Chevrolet
>>
1988
>>
Monte Carlo V8-305 5.0L VIN H 4-bbl
>>
Repair and Diagnosis
>>
Diagrams
>>
Electrical Diagrams
>>
Windows
>>
Power Windows
Power Windows

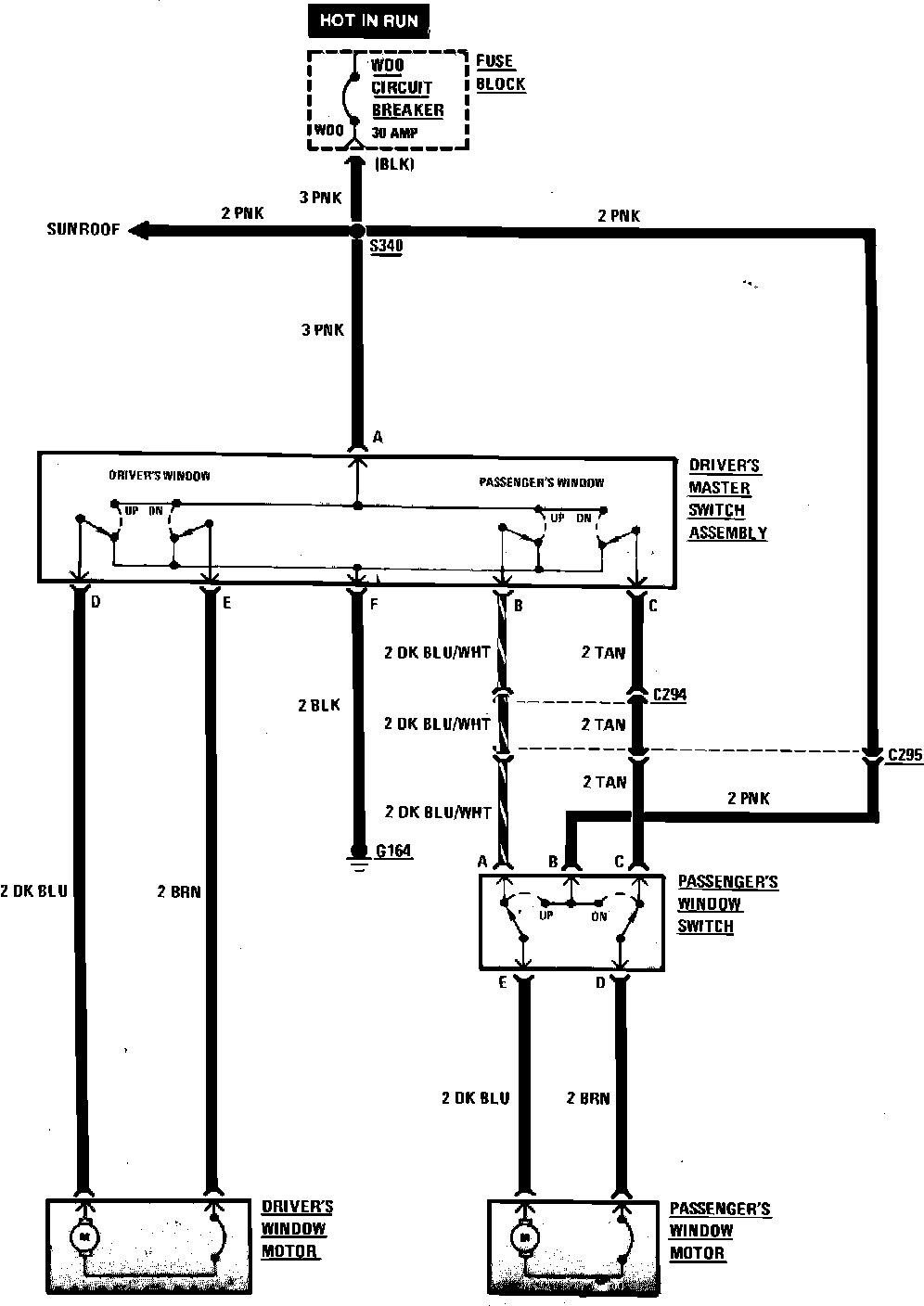

Fig. 417 Power Windows Wiring Circuit. 1983 Grand Prix:
