Power/Accessory Circuit Breaker, ECM Fuse & Stop-Hazard Fuse
Power/Accessory Circuit Breaker, ECM Fuse & Stop-Hazard Fuse

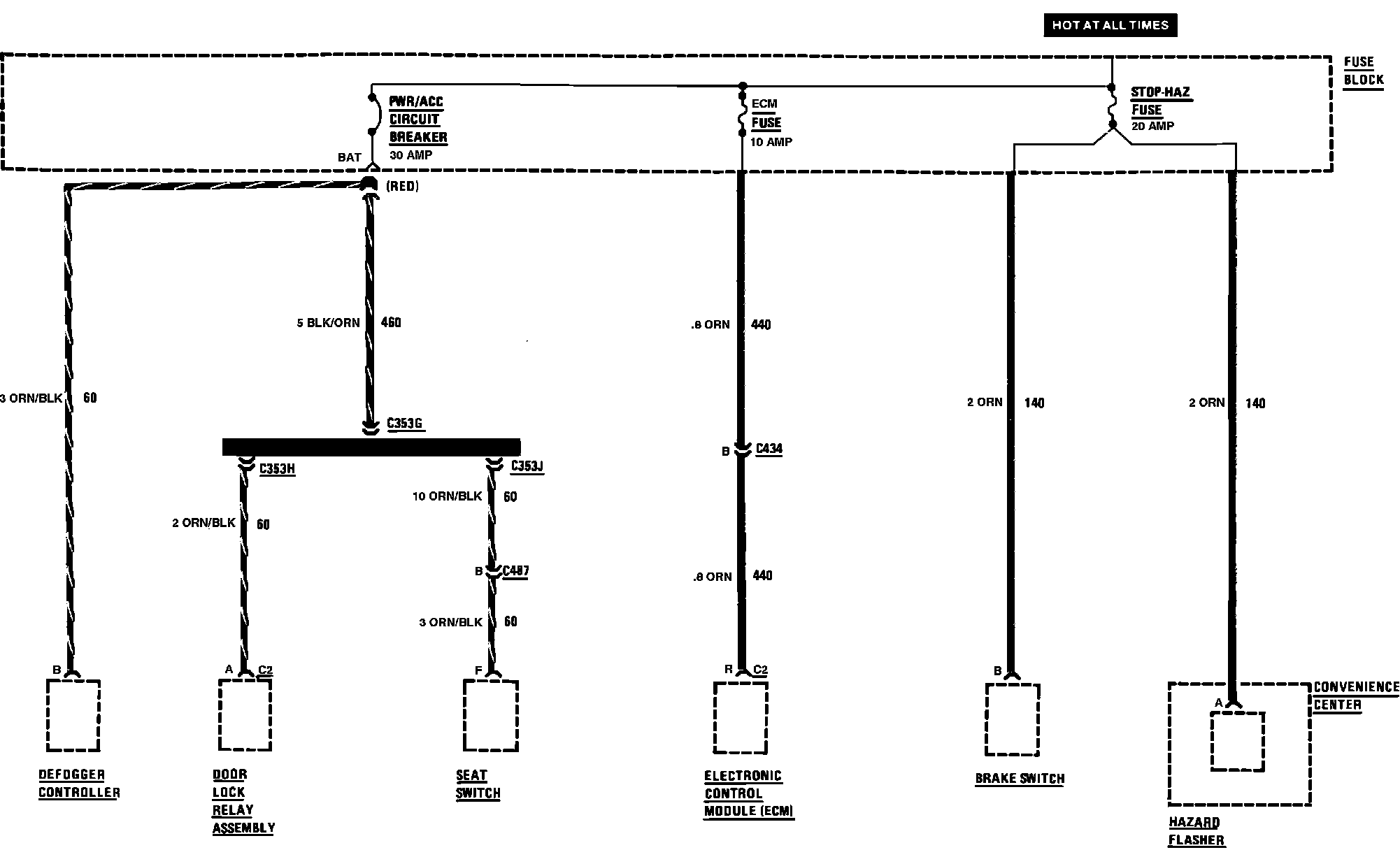

Power Accessory Circuit Breaker, Crank Fuse, ECM Fuse & Stop-Hazard Fuse:
