Chevrolet
>>
1988
>>
Corvette V8-350 5.7L
>>
Repair and Diagnosis
>>
Windows and Glass
>>
Windows
>>
Diagrams
>>
Electrical Diagrams
>>
Power Windows
Power Windows

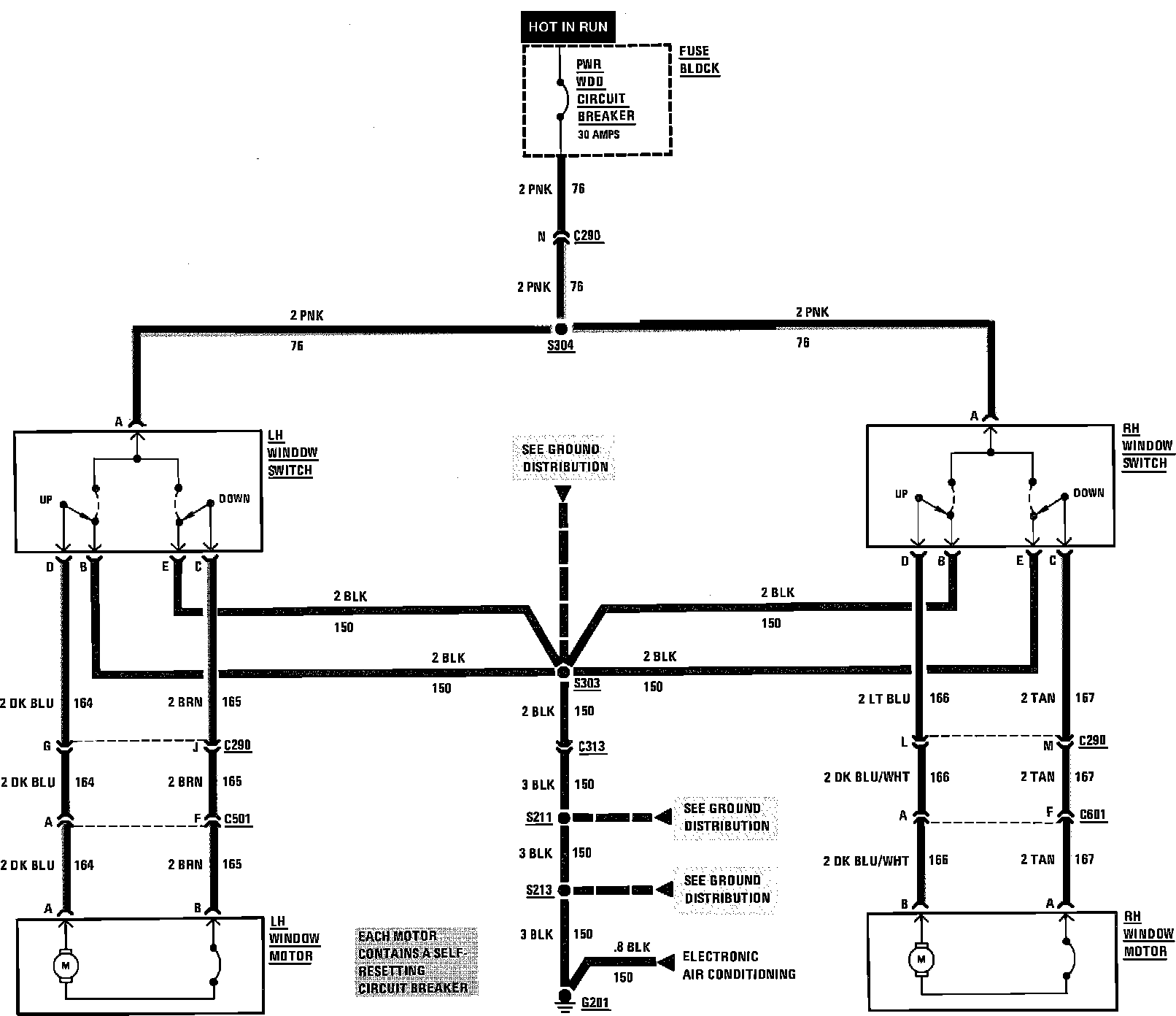

Power Window Wiring Circuit:
