Park Lock Cable

Description:

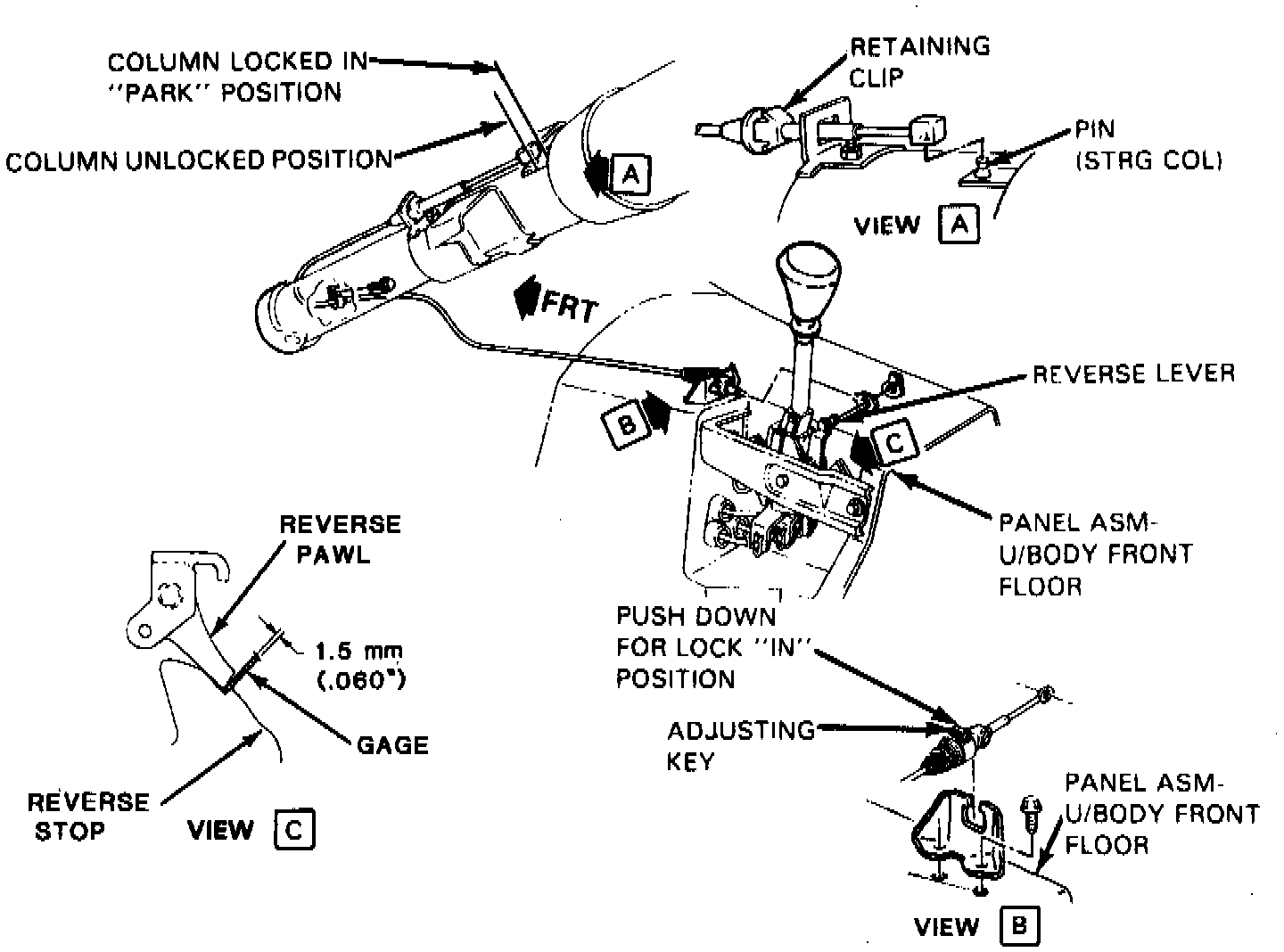

1. Lift adjusting key upward and release cable.

2. Place steering column lock lever into lock park position.

3. Place transmission shift lever into Reverse.

4. Insert a 0.060 inch feeler gauge against reverse stop, then pull reverse lever until reverse pawl contacts feeler gauge.

5. Push adjusting key downward to set cable.

6. Remove feeler gauge and pull back on shift lever.

7. Ensure reverse pawl hits reverse stop and locks shifter lever in Reverse.
