Suspension - New Front Leaf Spring Compressor Tool
88chevy21Number: 88-272-3C
Section: 3C
Date: AUG, 1988
Subject: SERVICE MANUAL UPDATE FRONT LEAF SPRING COMPRESSOR ADAPTER
Model and Year: 1988 CORVETTE
TO: ALL CHEVROLET DEALERS

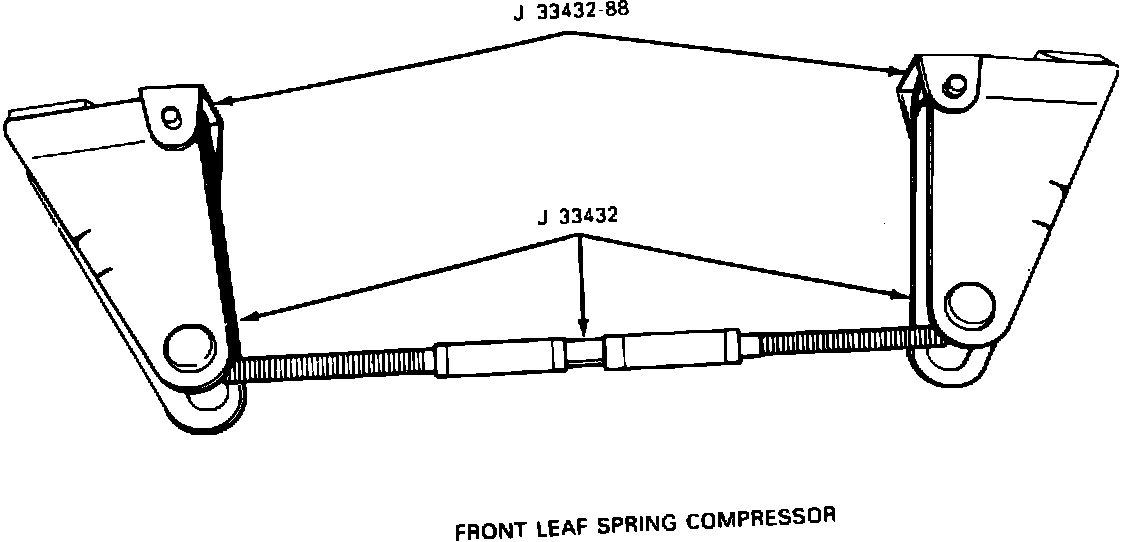

A new front leaf spring compressor adapter, J33432-88, has been developed and will be available approximately 9/15/88 from Kent-Moore, for use on all 1988 Corvettes. This adapter can be used with existing front leaf spring compressor, J33432. The new adapter was released due to the wider front transverse spring on the 1988 Corvette.
These new adapters may be used on all Corvette front transverse springs from 1984 - 1988.
