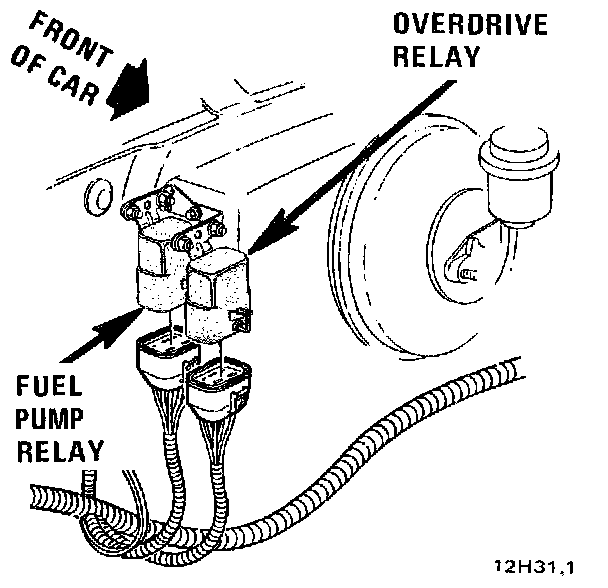

FUEL PUMP RELAY
RH Front Of Dash:
The Fuel Pump Relay is located on the RH front of dash, right of brake master cylinder.
