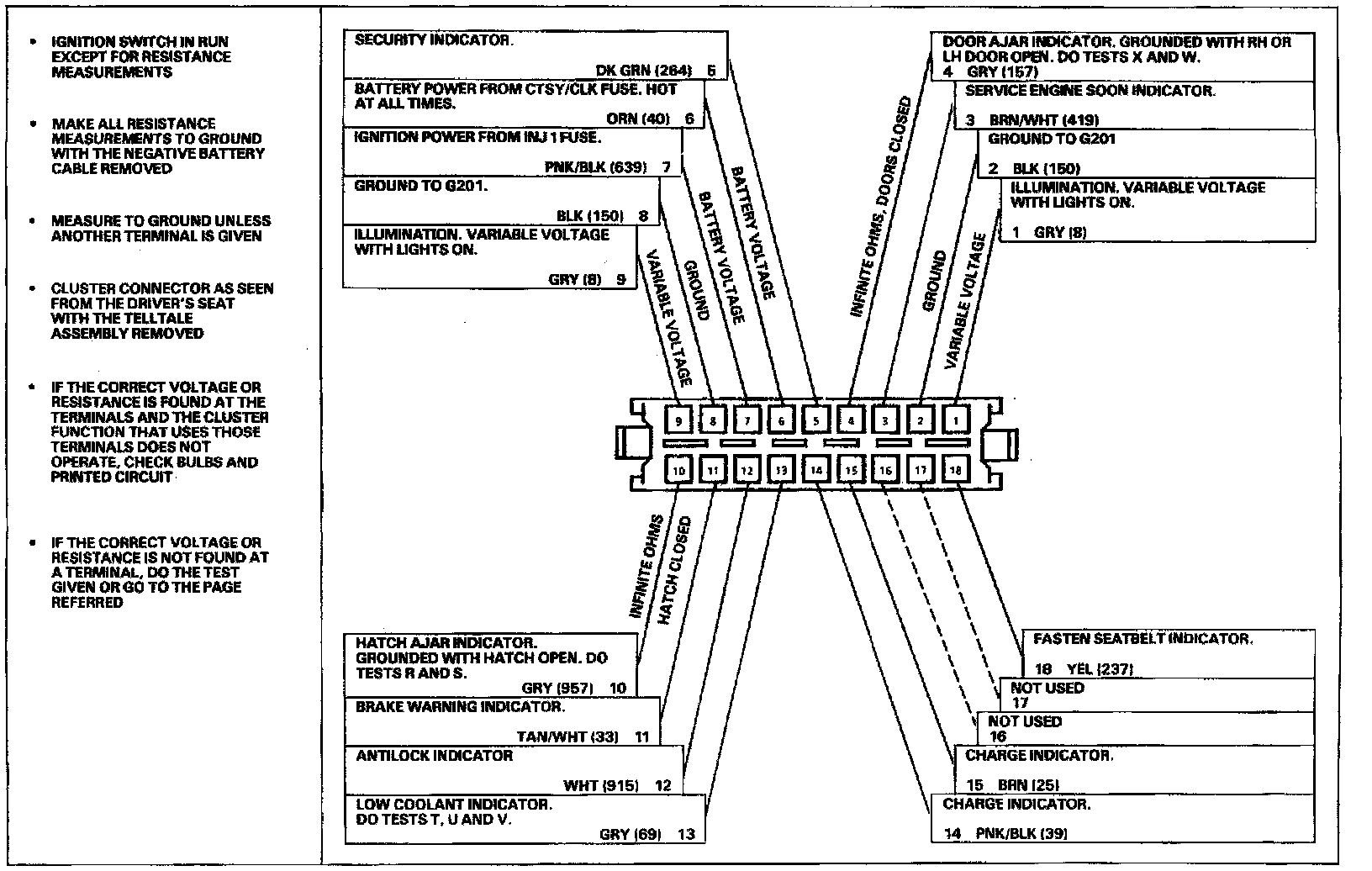

C: Telltale Assembly Connector Pinout Test
C: Telltale Assembly Connector Pinout Test
C: Telltale Assembly Connector Pinout Test
