Home
>>
Chevrolet
>>
1988
>>
Corvette V8-350 5.7L
>>
Repair and Diagnosis
>>
Instrument Panel, Gauges and Warning Indicators
>>
Testing and Inspection
>>
Symptom Related Diagnostic Procedures
>>

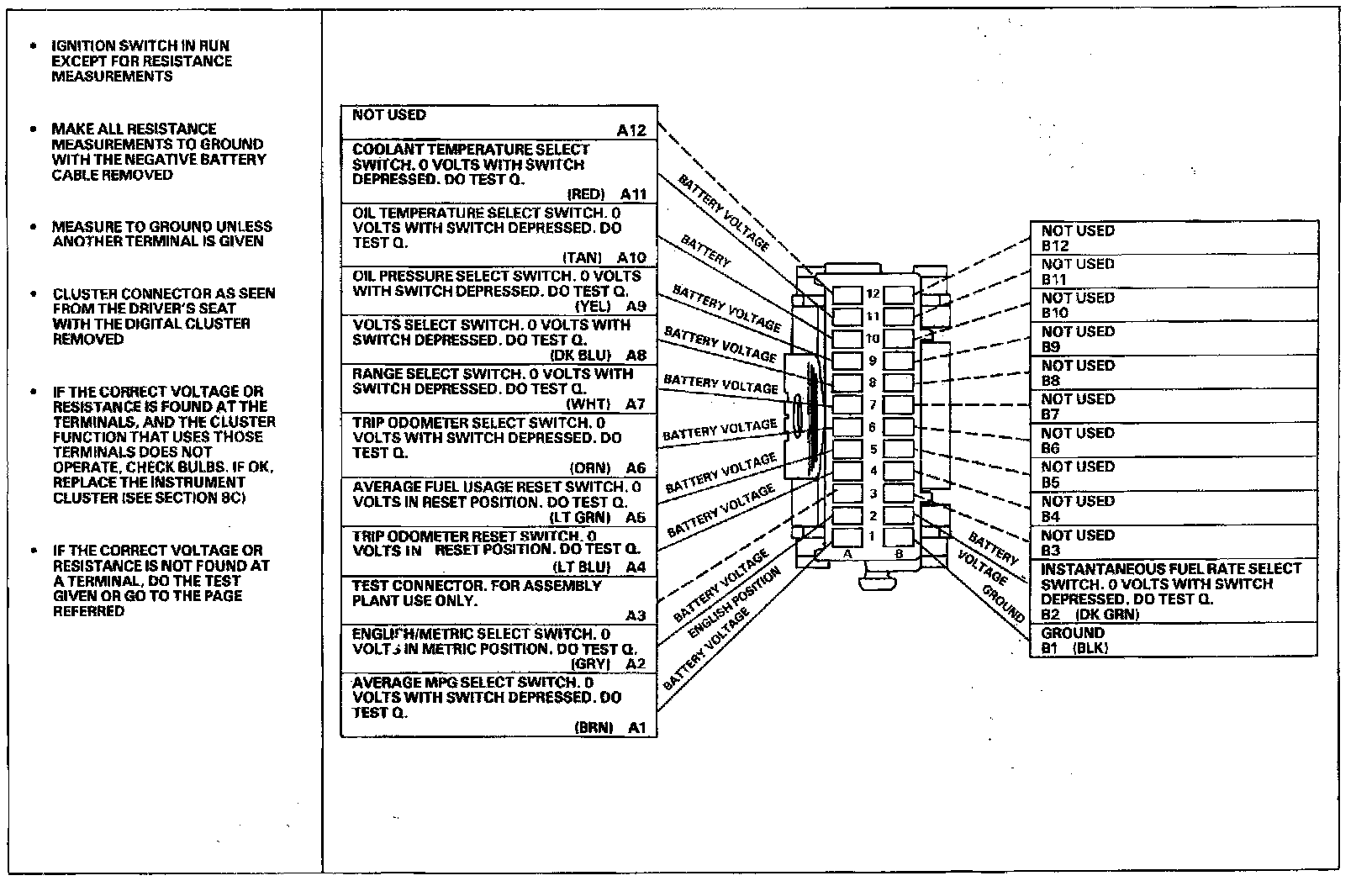

B: Cluster Connector Pinout Test
B: Cluster Connector Pinout Test
B: Cluster Connector Pinout Test
