Coolant Fan Fuse, Cruise Control Fuse & Instrument Fuse
Coolant Fan Fuse, Cruise Control Fuse & Instrument Fuse

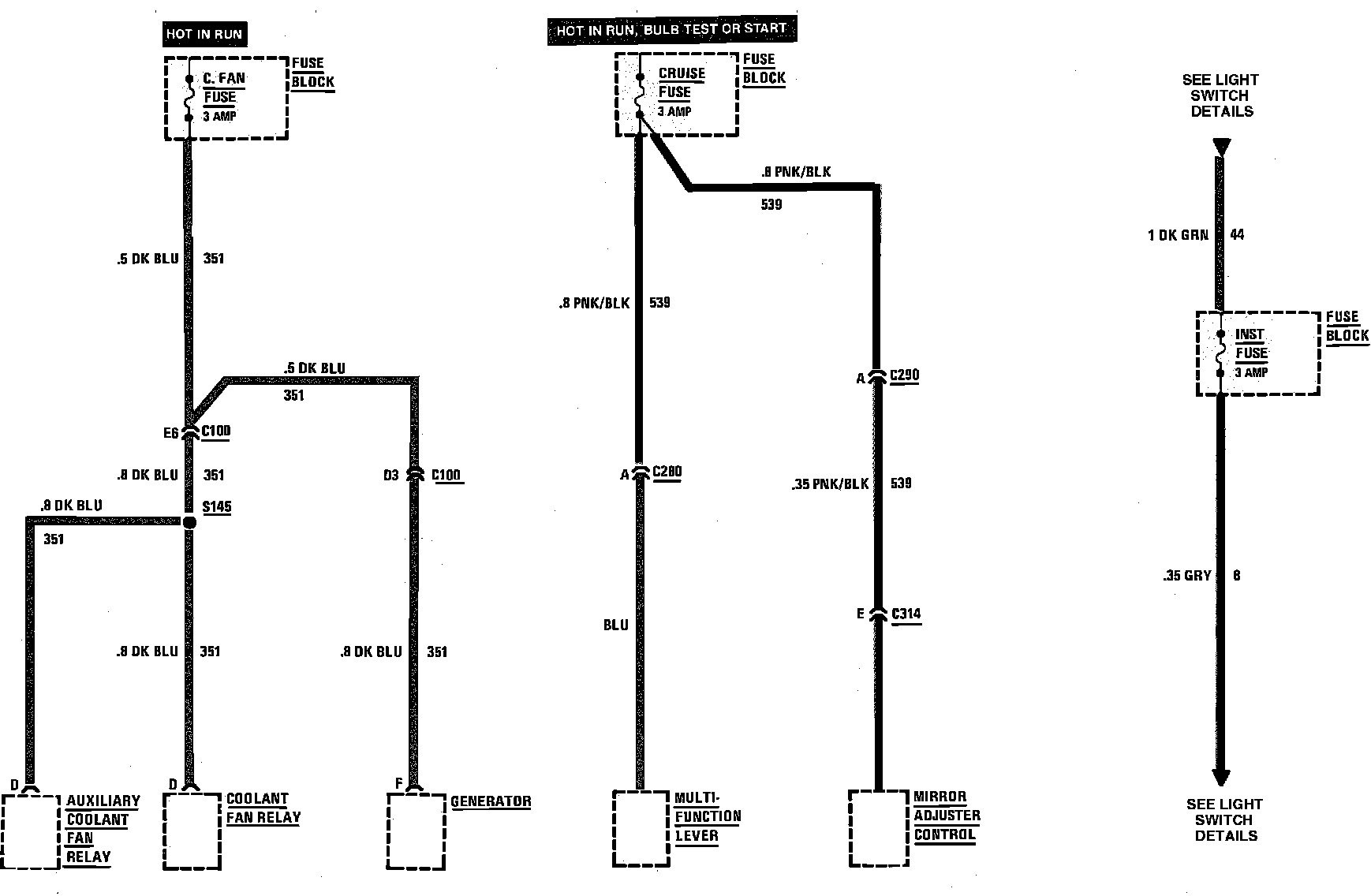

Fuse Block Details (Coolant Fan Fuse, Cruise Control Fuse & Instrument Fuse):
