Home
>>
Chevrolet
>>
1988
>>
Corvette V8-350 5.7L
>>
Repair and Diagnosis
>>
Diagrams
>>
Electrical Diagrams
>>
Starting and Charging
>>
Power and Ground Distribution
>>
Fuse
>>
Back-Up Fuse, Hazard Fuse, Radio Fuse, Stop Fuse & Turn Fuse
Back-Up Fuse, Hazard Fuse, Radio Fuse, Stop Fuse & Turn Fuse

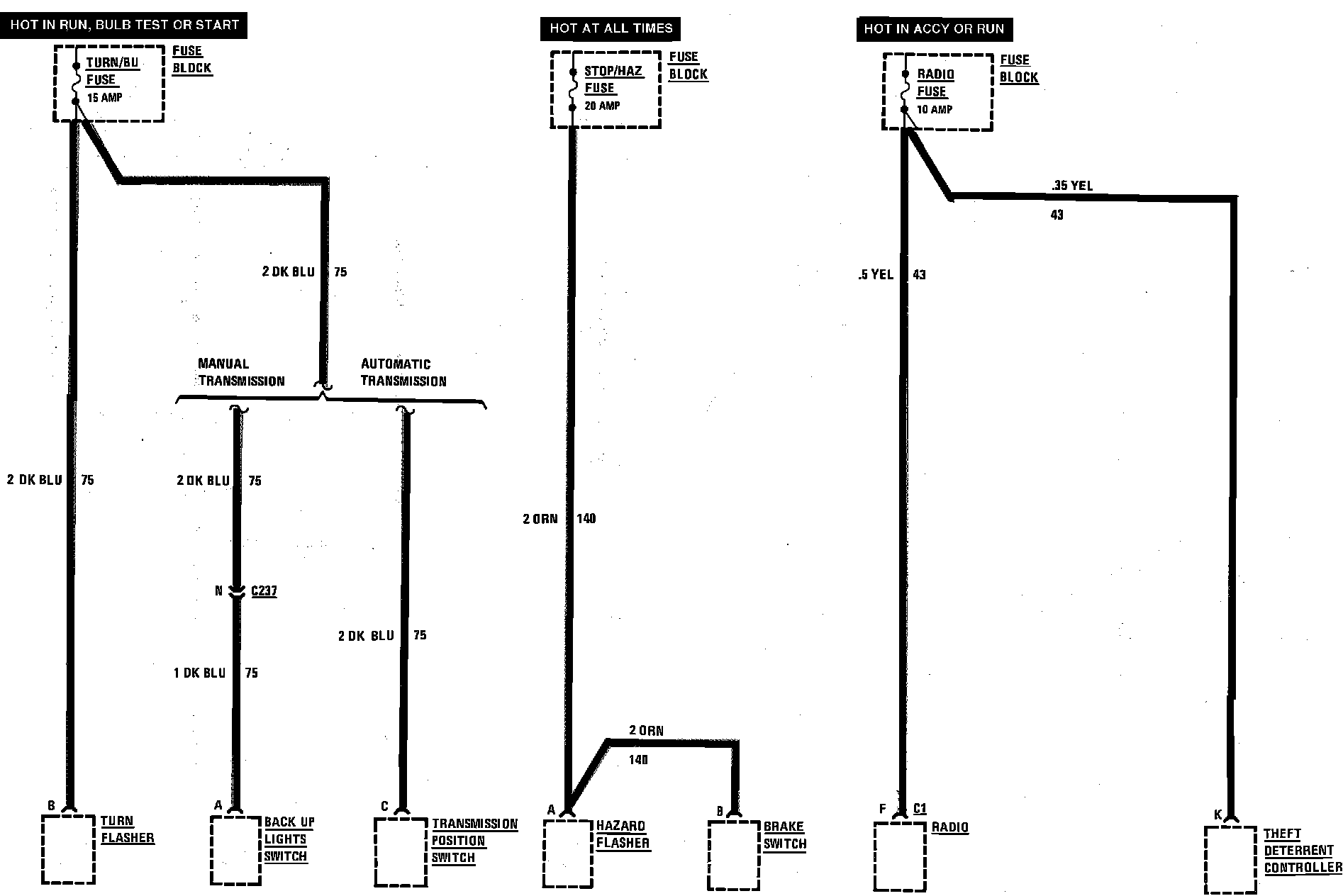

Fuse Block Details (Back-Up Fuse, Hazard Fuse, Radio Fuse, Stop Fuse & Turn Fuse):
