A/C Fuse, ECM Ignition Fuse & VATS Fuse
A/C Fuse, ECM Ignition Fuse & VATS Fuse

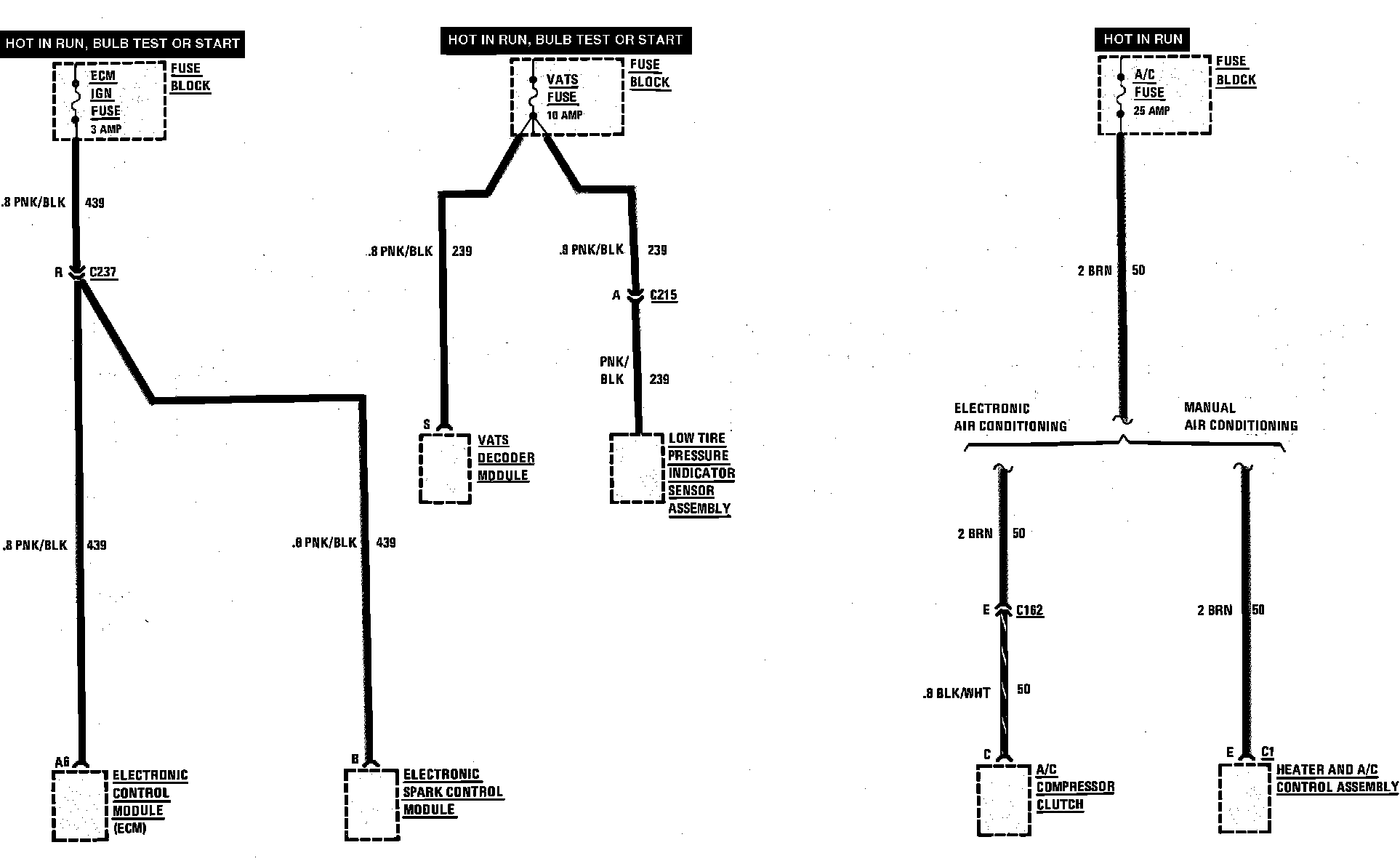

Fuse Block Details (A/C Fuse, ECM Igniton Fuse & VATS Fuse):
