Circuit Breaker

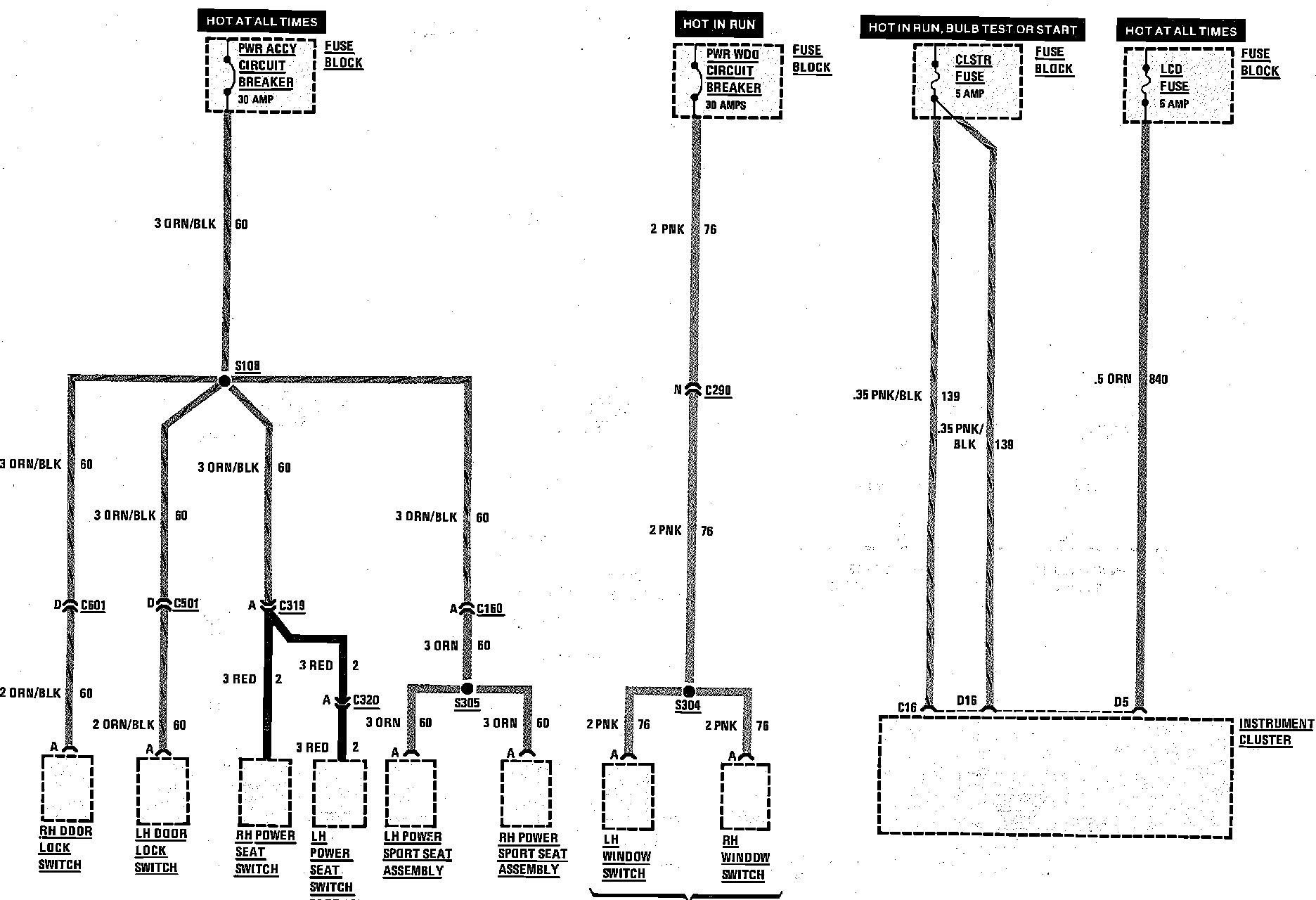

Fuse Block Details (Cluster Fuse, LCD Fuse, Power Accessory & Power Window Circuit Breaker):
