Left Seat
Left Seat

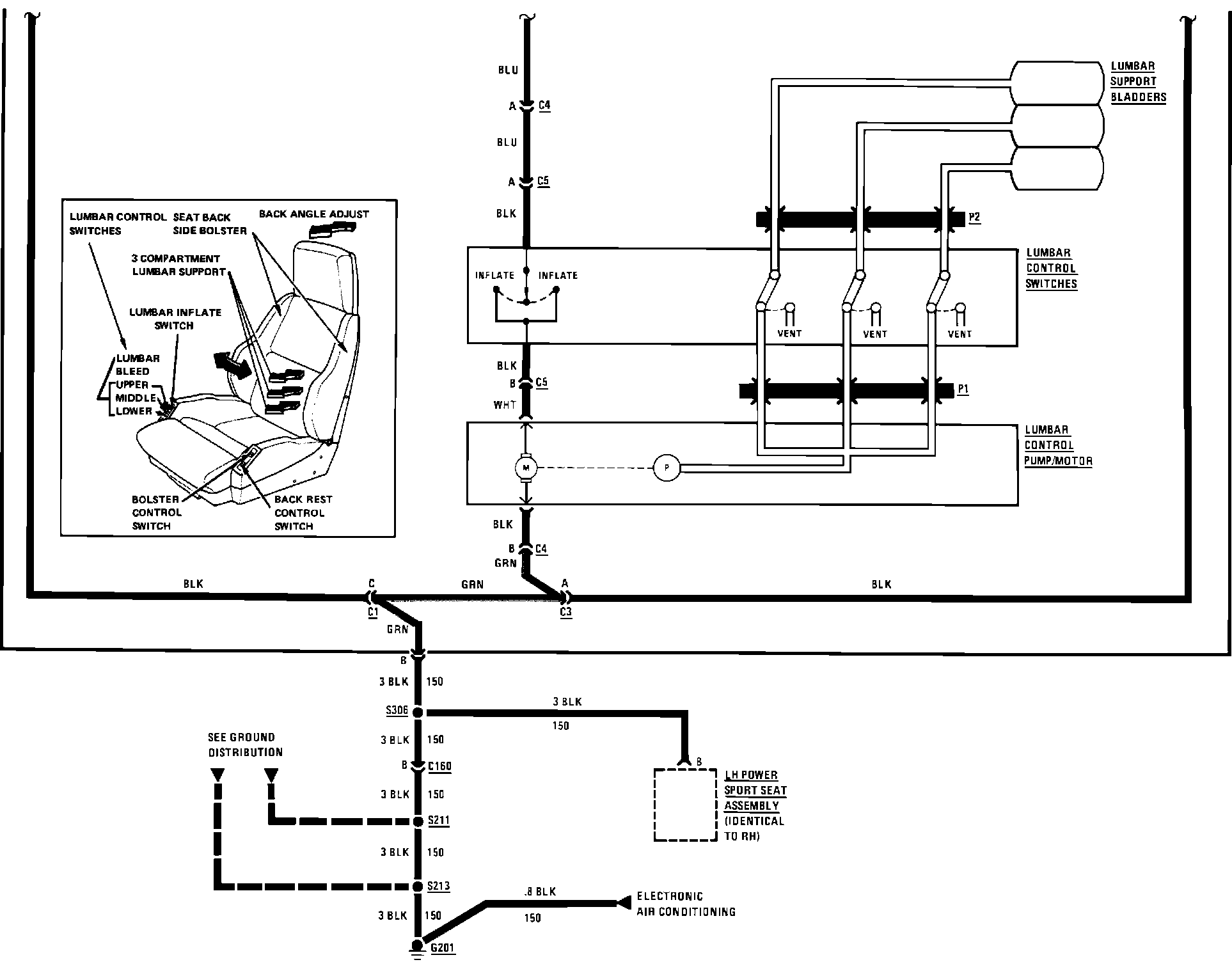

Lumbar Support Wiring Circuit (LH Seat):
Lumbar Support Wiring Circuit (LH Seat):
