Home
>>
Chevrolet
>>
1988
>>
Corvette V8-350 5.7L
>>
Repair and Diagnosis
>>
Diagrams
>>
Electrical Diagrams
>>
Radio, Stereo, and Compact Disc
>>
With Delco-Bose System
>>
Convertible
Convertible

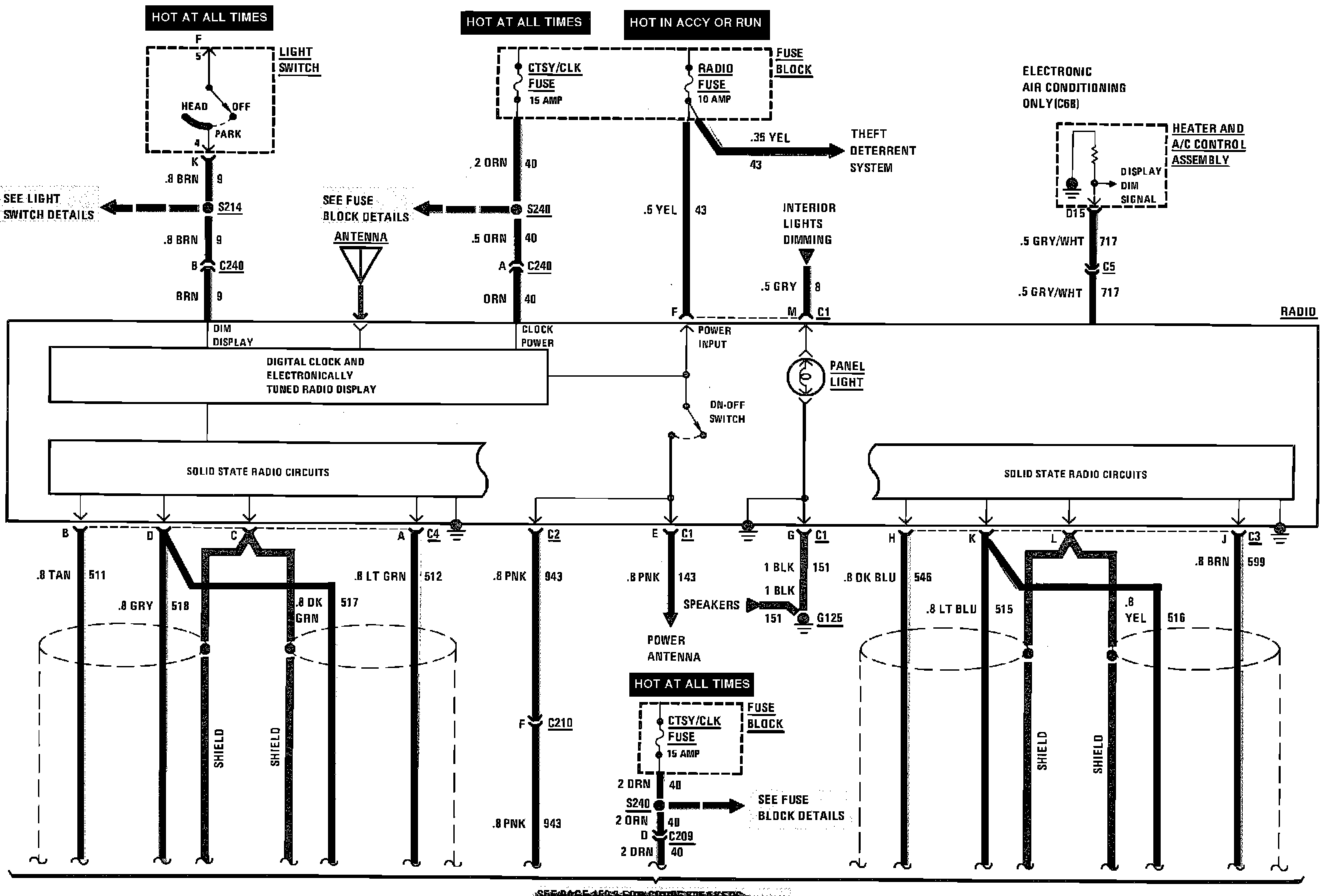

Radio & Speaker Wiring Circuit. W/Delco-Bose System:

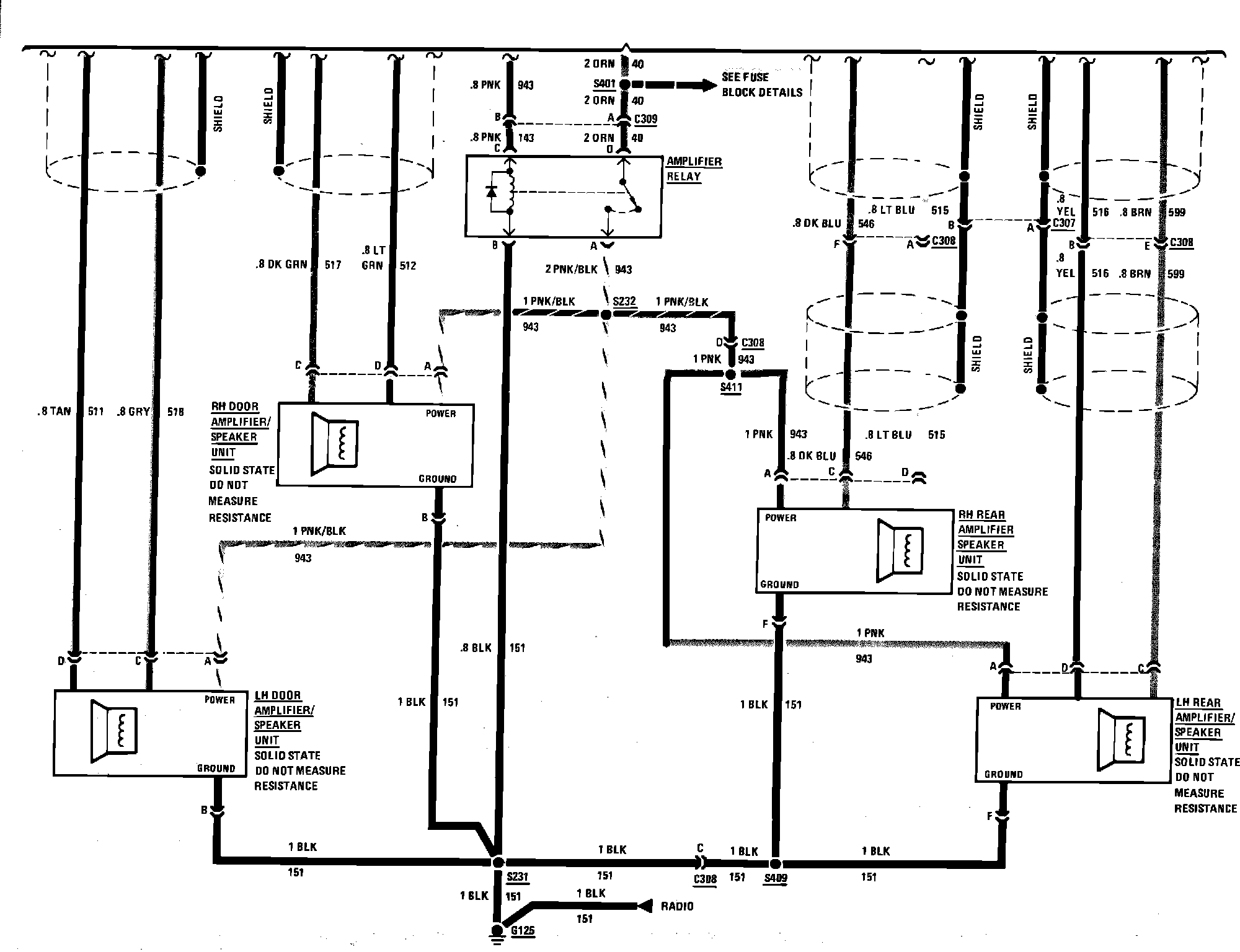

Radio & Speaker Wiring Circuit (Convertible W/Delco-Bose Music System):
