Corvette V8-350 5.7L
>>
Repair and Diagnosis
>>
Diagrams
>>
Electrical Diagrams
>>
Mirrors
>>
Heated Element, Mirror
>>
Manual A/C
Manual A/C

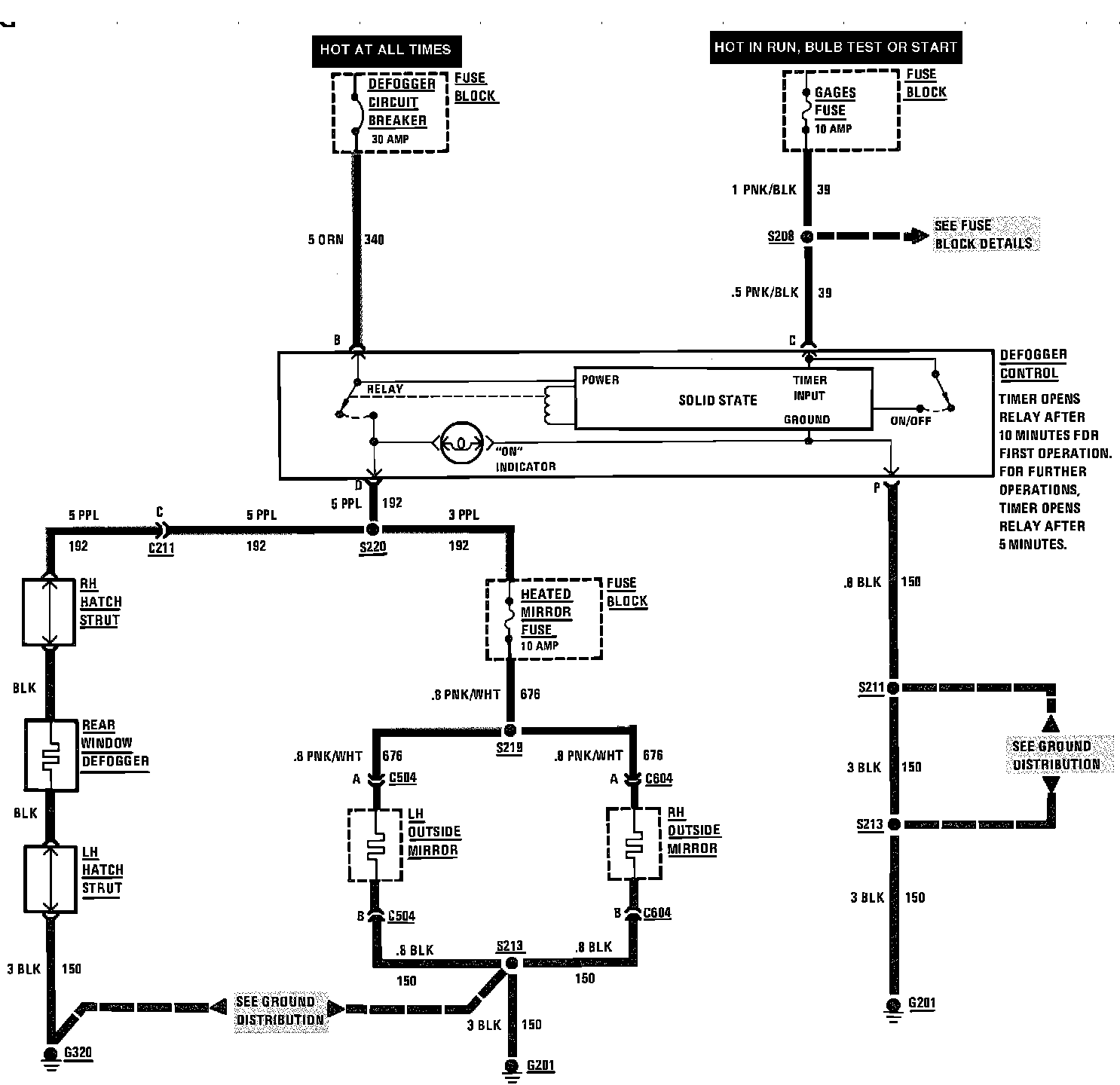

Heated Mirrors & Rear Defogger Wiring Circuit (Manual Air Conditioning):
