Turn Signals

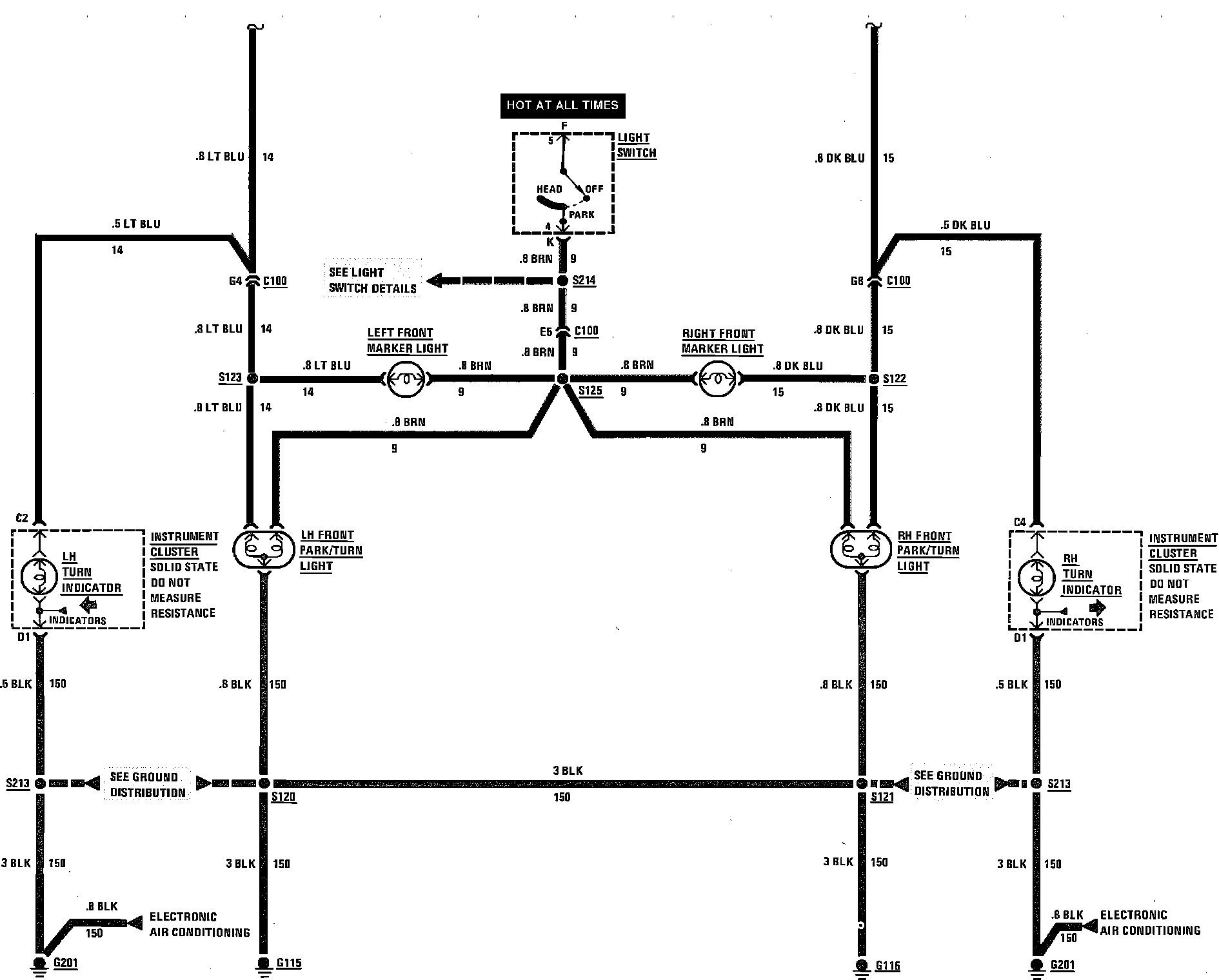

Front Marker, Hazard, Park, Stop & Turn Lights Wiring Circuit:



Front Marker, Hazard, Park, Stop & Turn Lights Wiring Circuit:
