Map Light
>>
Convertible
Convertible

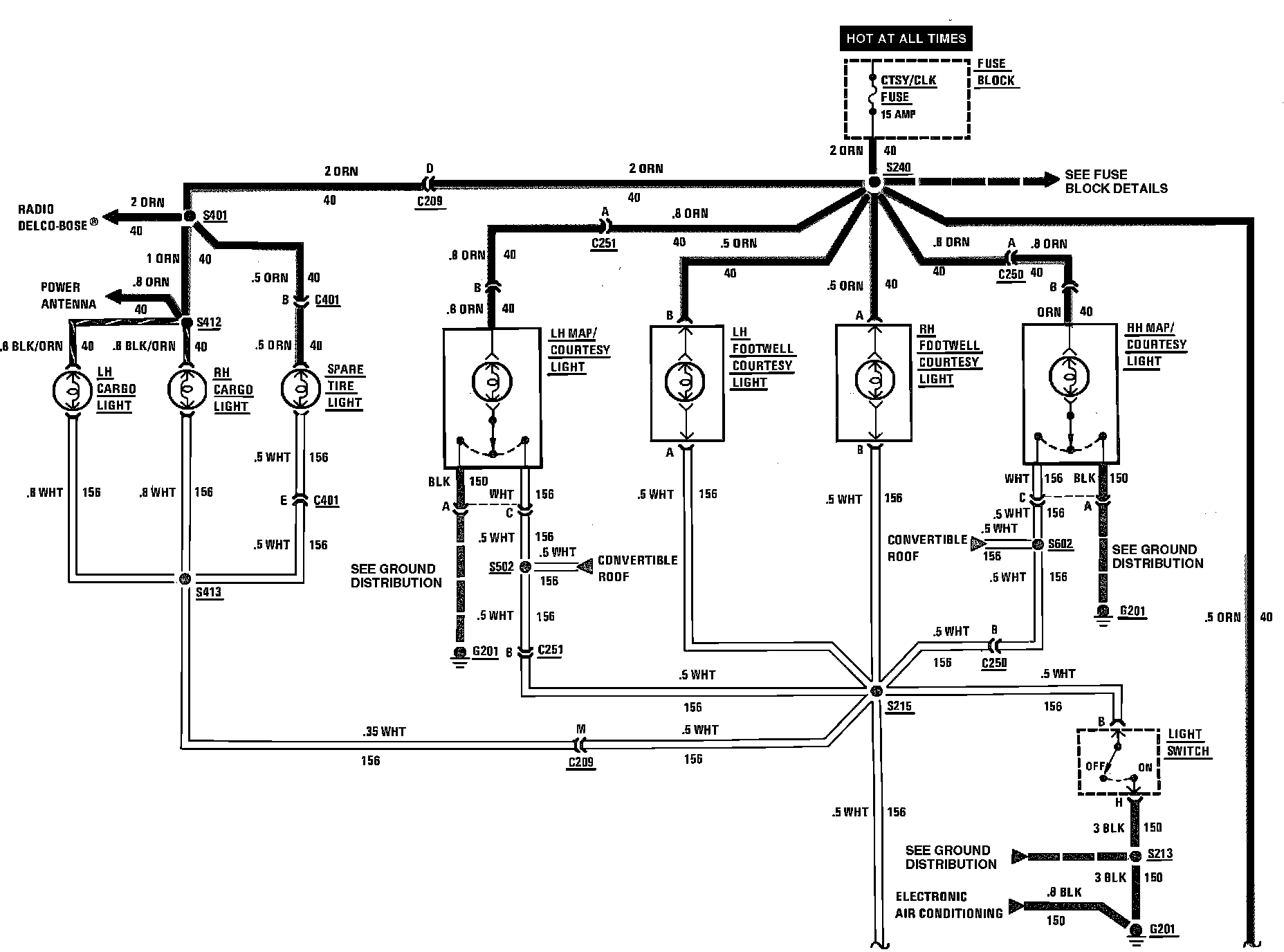

Cargo, Courtesy, Header Map, Map Spare Tire, And Vanity Mirror Wiring Circuit (Convertible):

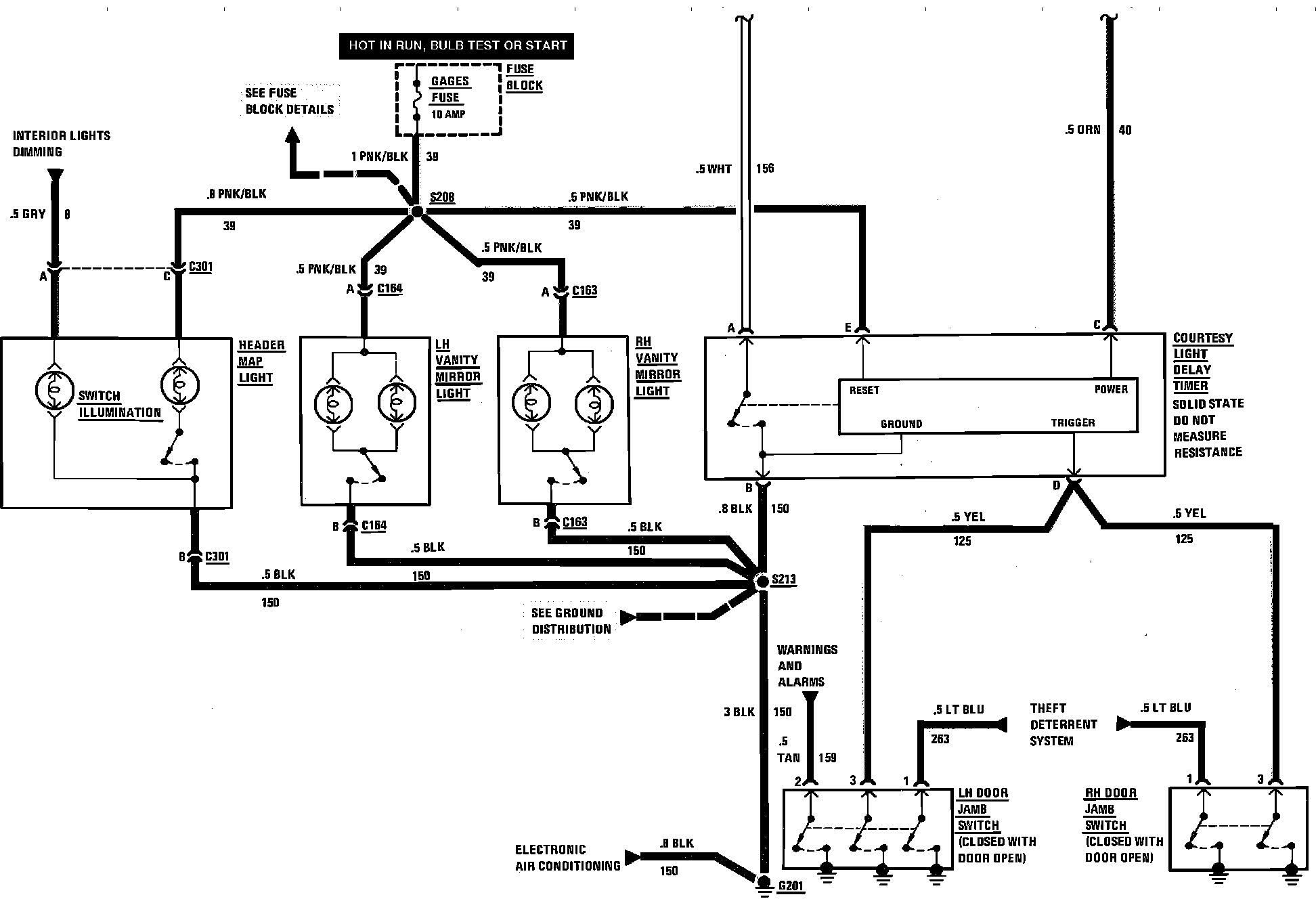

Cargo, Courtesy, Header Map, Map Spare Tire, And Vanity Mirror Wiring Circuit (Convertible):
