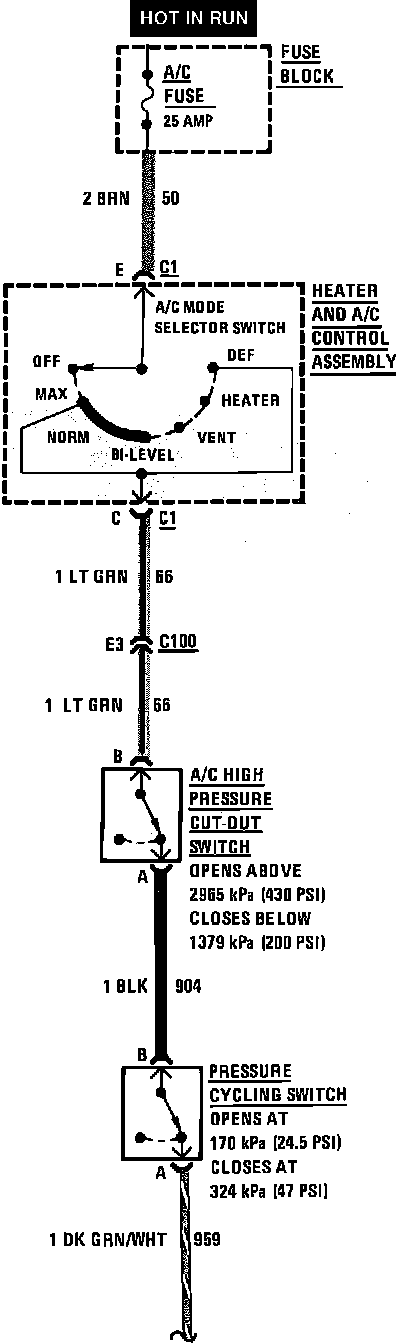

A/C Compressor Controls Wiring Circuit (W/Manual Control):
A/C Compressor Controls Wiring Circuit (W/Manual Control):
