Home >> Chevrolet >> 1988 >> Corvette V8-350 5.7L >> Repair and Diagnosis >> Brakes and Traction Control >> Antilock Brakes / Traction Control Systems >> ABS Light >> Testing and Inspection >> G: Pump Motor Relay Test (Table 3)

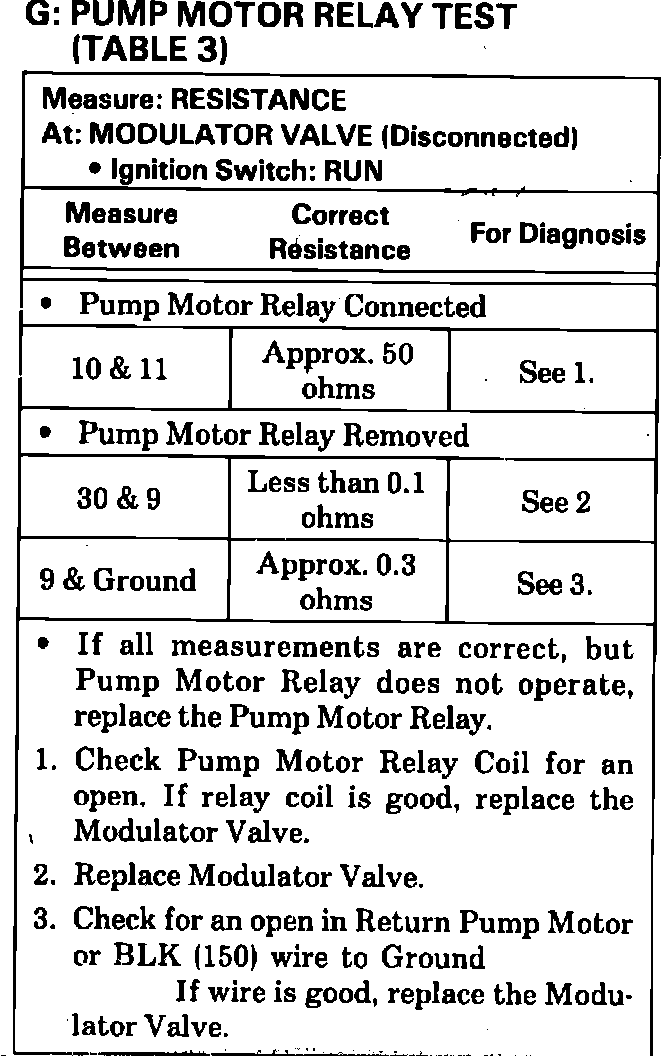

G: Pump Motor Relay Test (Table 3)

Fig. 22 Pump motor relay test (Part 3 of 3). 1987:
