Home
>>
Chevrolet
>>
1988
>>
Celebrity V6-173 2.8L
>>
Repair and Diagnosis
>>
Power and Ground Distribution
>>
Diagrams
>>
Electrical Diagrams
>>
Ground Distribution
>>
G105 & G112
G105 & G112

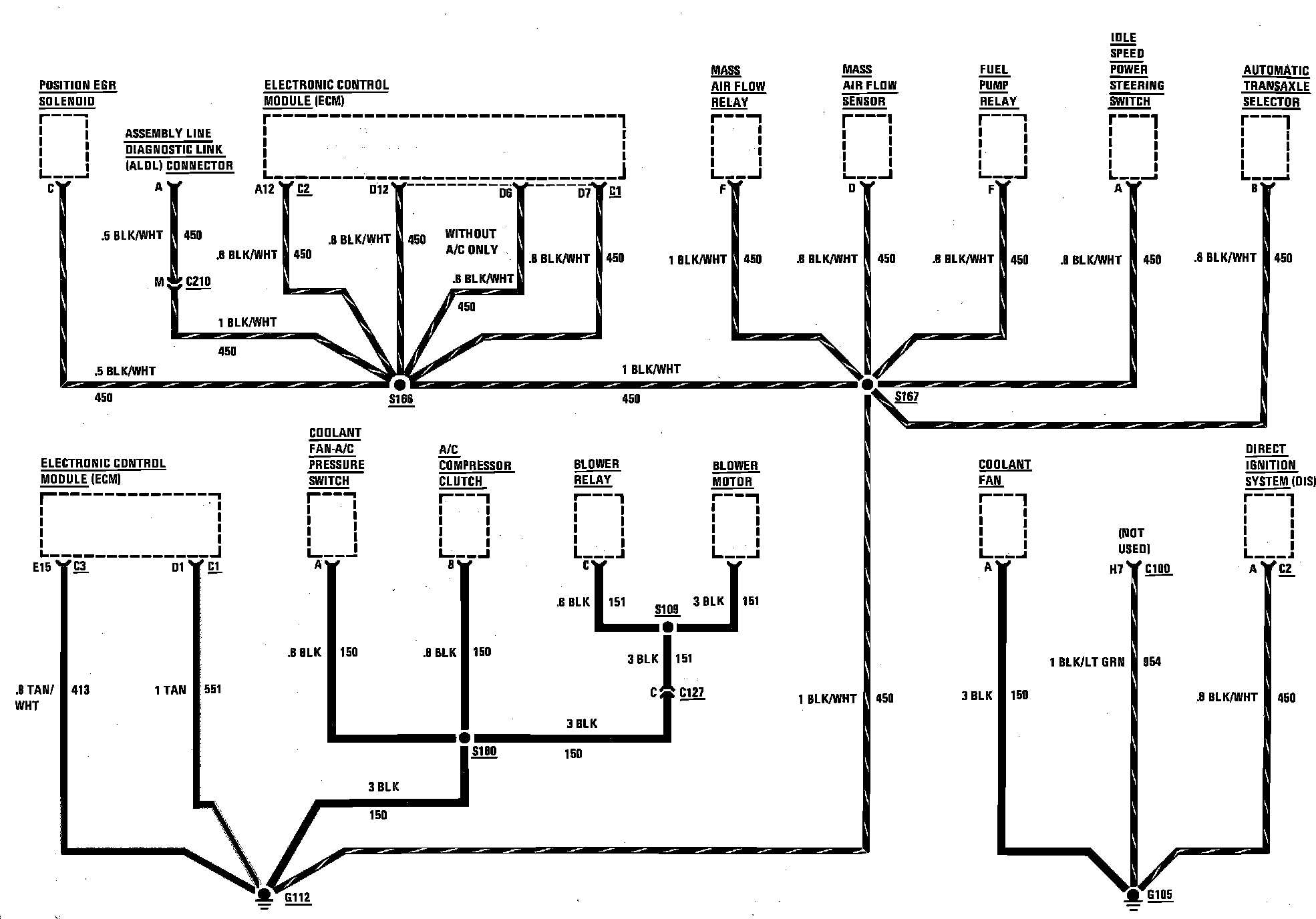

Ground Distribution. (G105 & G112):
