Interior - Glove Box Lock Not Engaging
88chevy10Number: 88-194-10
Section: 10
Date: APRIL, 1988
Subject: GLOVE BOX LOCK NOT ENGAGING
Model and Year: 1984-88 CELEBRITY
TO: ALL CHEVROLET DEALERS
Comments may be received that the glove box lock does not lock when the key cylinder is turned to the lock position. To address this condition:
1. Remove lock assembly from glove box door.
2. Remove pawl from back of lock cylinder by removing retainer clip.

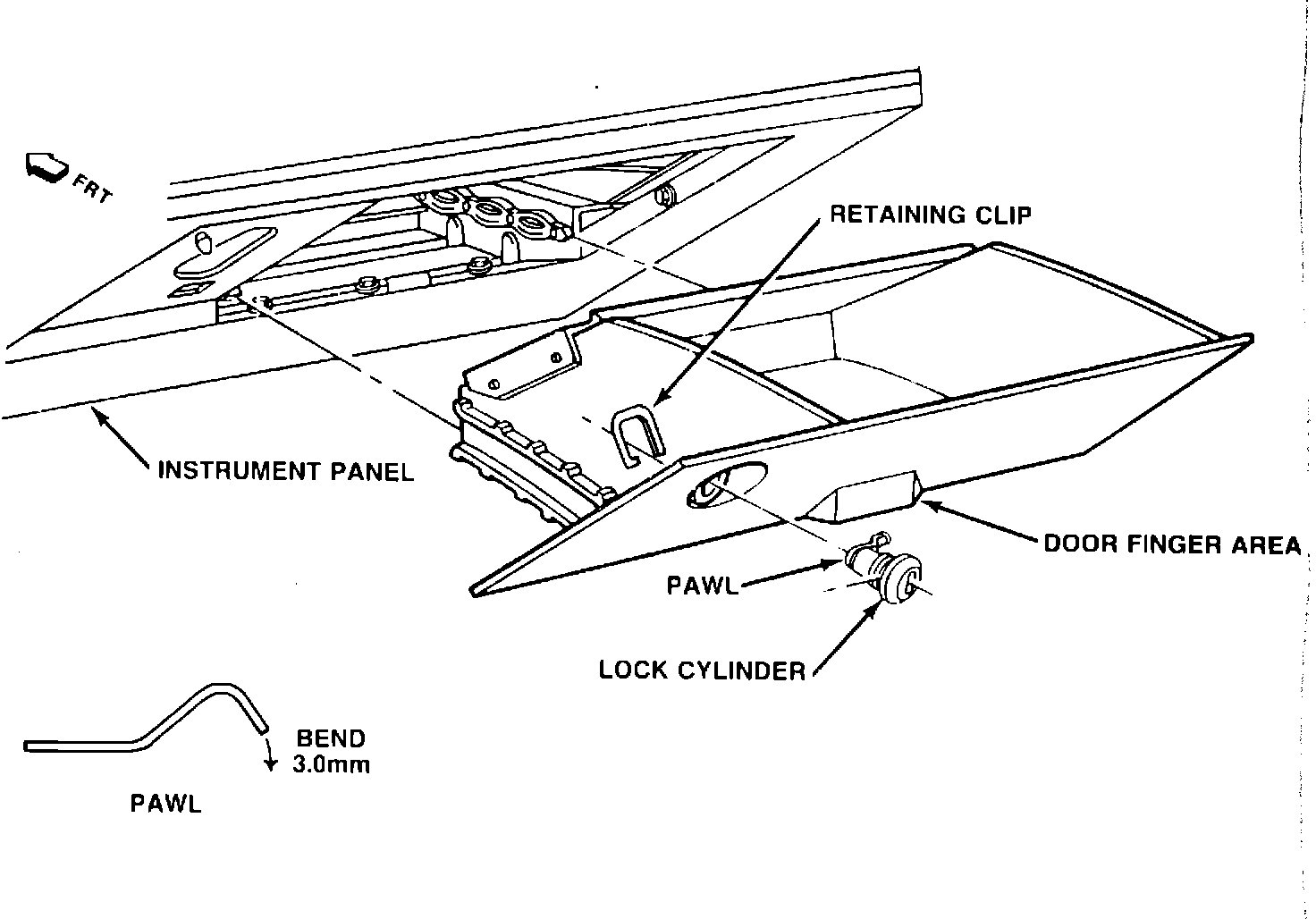

3. Bend pawl down approximately 3.0 mm as Illustrated.
4. Reinstall pawl and lock cylinder and check for secure lock action by turning lock cylinder with key, and then pulling on door finger area.
Labor Operation Number: C2100
Labor Time: .3 Hours
