A/T - 440-T4 Valve Body Clamping Plate Eliminated
88chevy22Number: 88-237-7A
Section: 7A
Date: JUNE, 1988
Subject: VALVE BODY CLAMPING PLATE ELIMINATED 440-T4
Model and Year: 1988 CELEBRITY WITH THM 440-T4 TRANSAXLE
TO: ALL CHEVROLET DEALERS

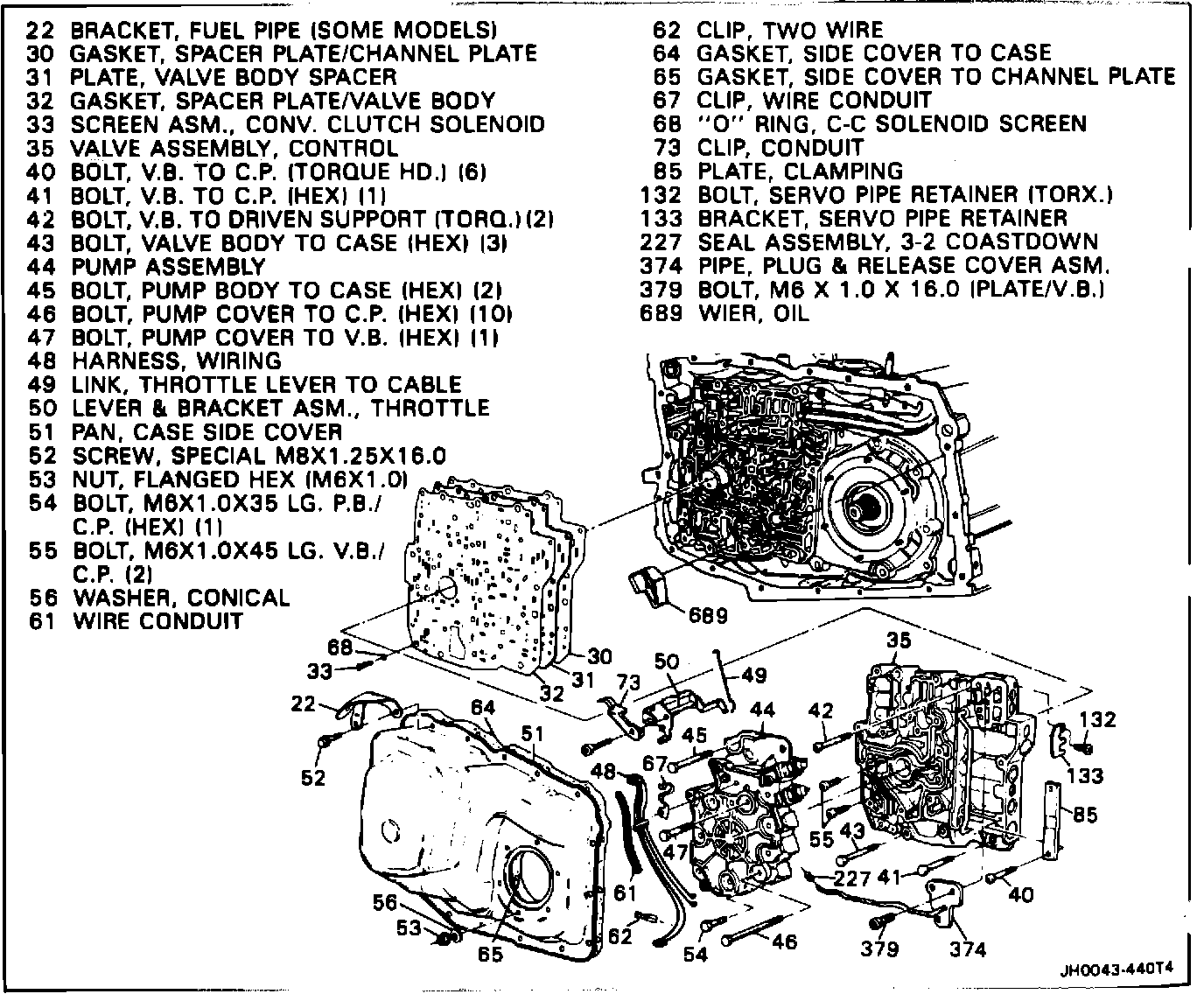

As of October 8, 1987, (Julian Date 281) the valve body clamping plate, Item Number 85 in Illustration, was eliminated from production of all 440-T4 transaxles. Studies indicated this part was not required for proper clamp load on the control valve assembly, spacer plate, and gaskets.
Transaxles built prior to October 8, 1987 (Julian Date 281) will not be affected if the part is left out during reassembly. The strap (Service Part Number 8658287) will no longer be produced and will not be available when GMSPO stock is depleted.
