Power ACC Circuit Breaker & Stop Hazard Fuse

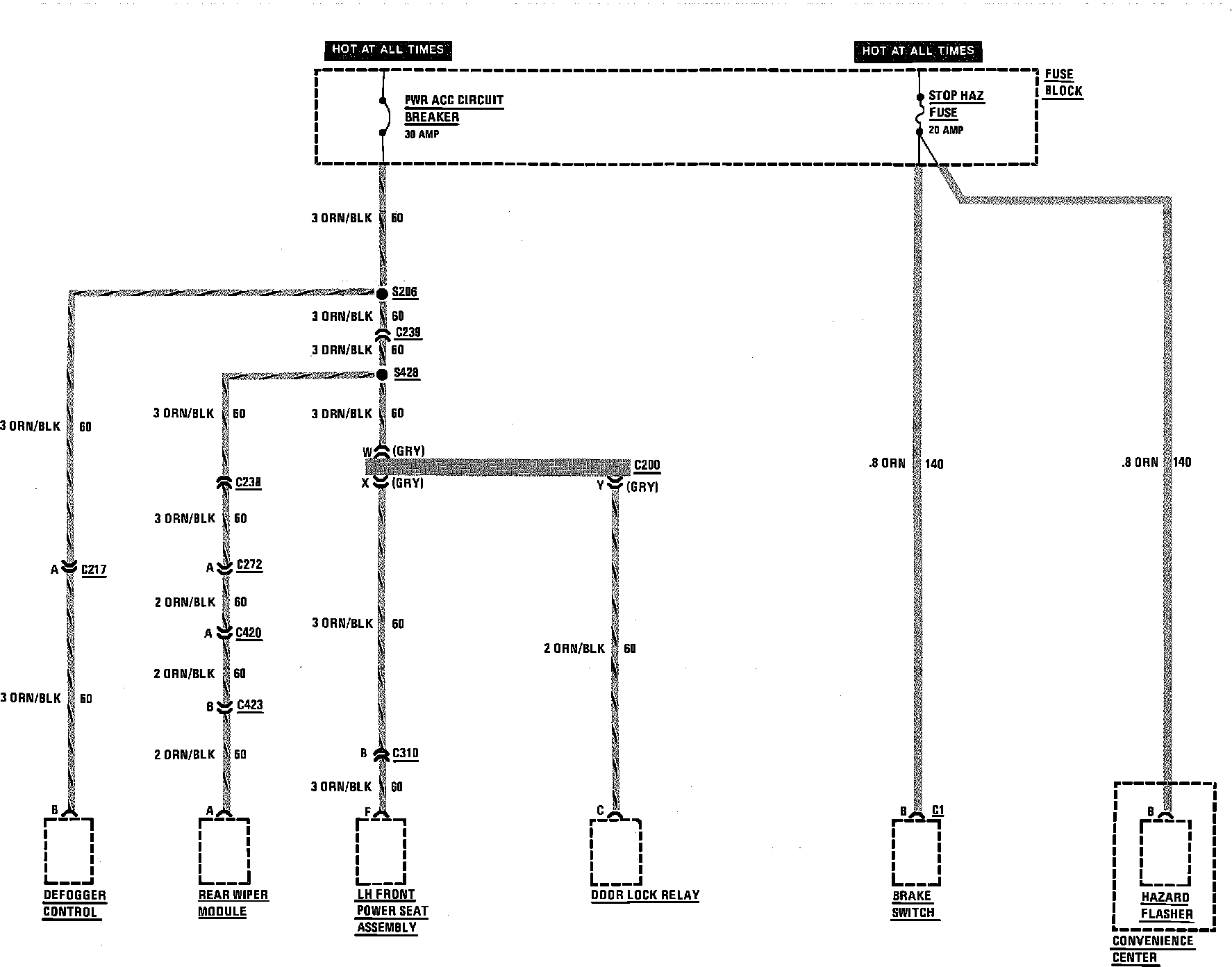

Fuse Block Details (Power ACC Circuit Breaker & Stop Hazard Fuse):
