Power and Ground Distribution
>>
Diagrams
>>
Electrical Diagrams
>>
Ground Distribution
>>
G403 & G410
G403 & G410

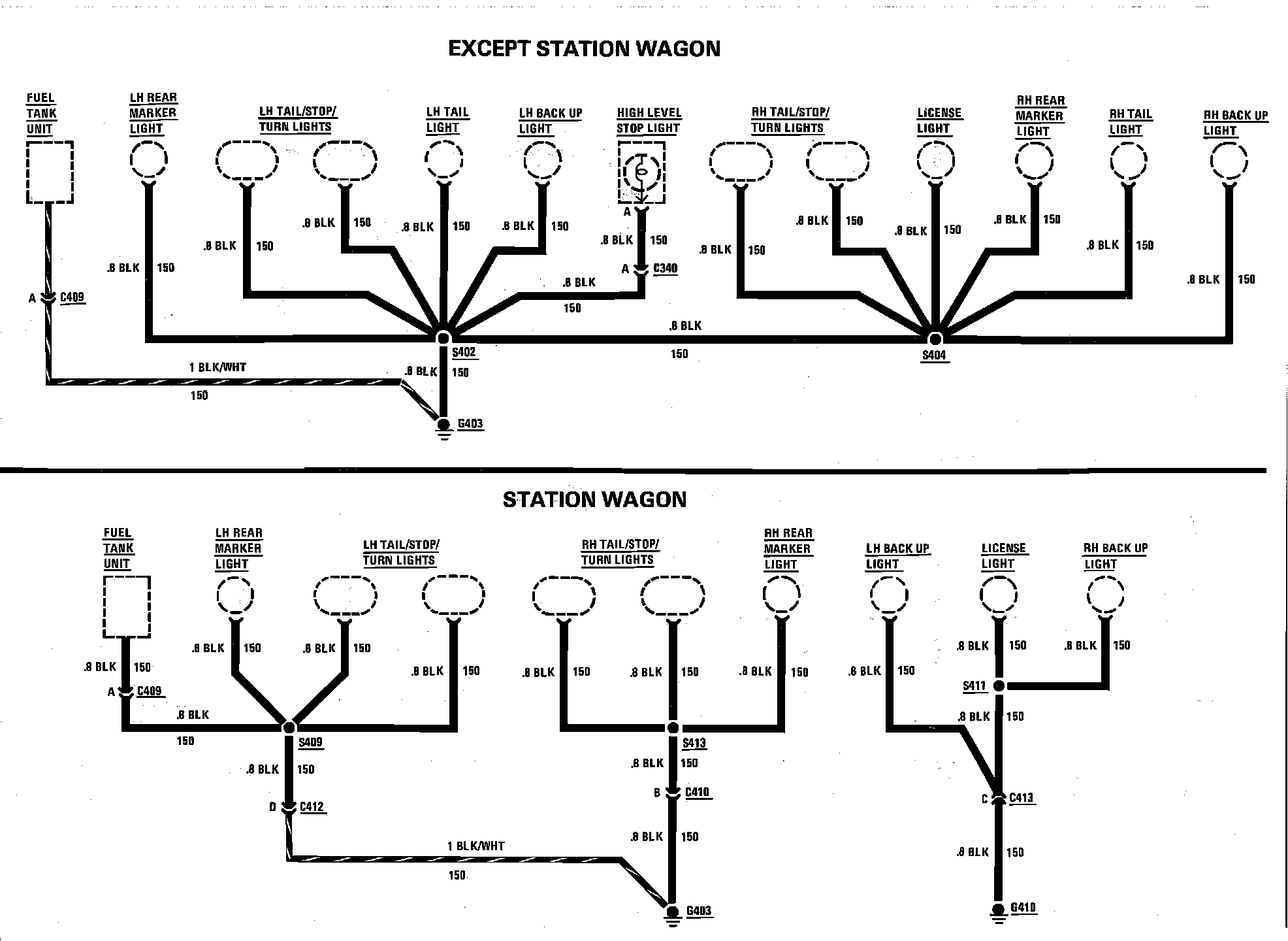

Ground Distribution. (G403 & G410):
