Power and Ground Distribution
>>
Diagrams
>>
Electrical Diagrams
>>
Ground Distribution
>>
G103 & G301
G103 & G301

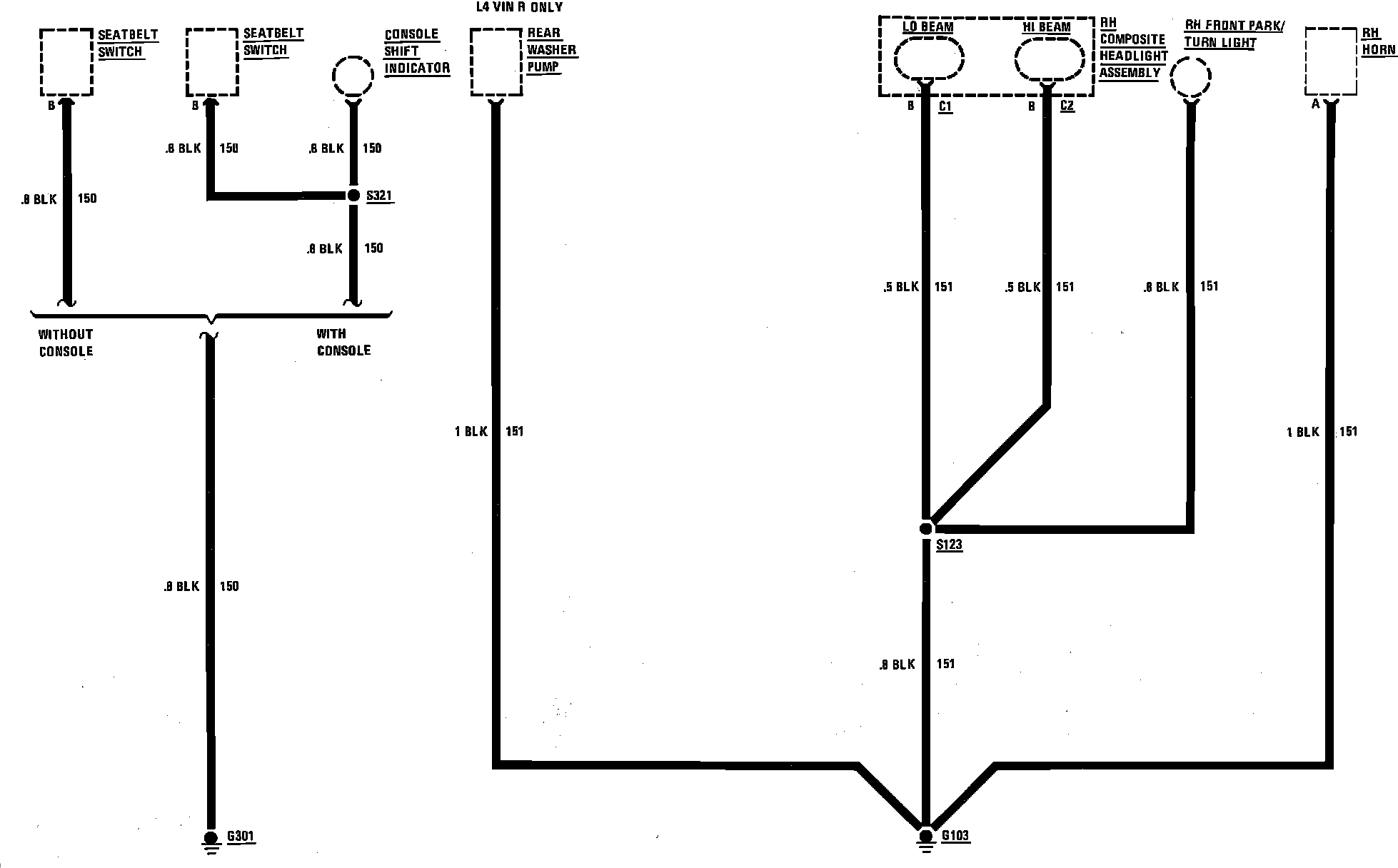

Ground Distribution. (G103 & G301):
