Home
>>
Chevrolet
>>
1988
>>
Celebrity L4-151 2.5L
>>
Repair and Diagnosis
>>
Diagrams
>>
Electrical Diagrams
>>
Windows
>>
System Diagram
>>
Fuse Block Details
Fuse Block Details

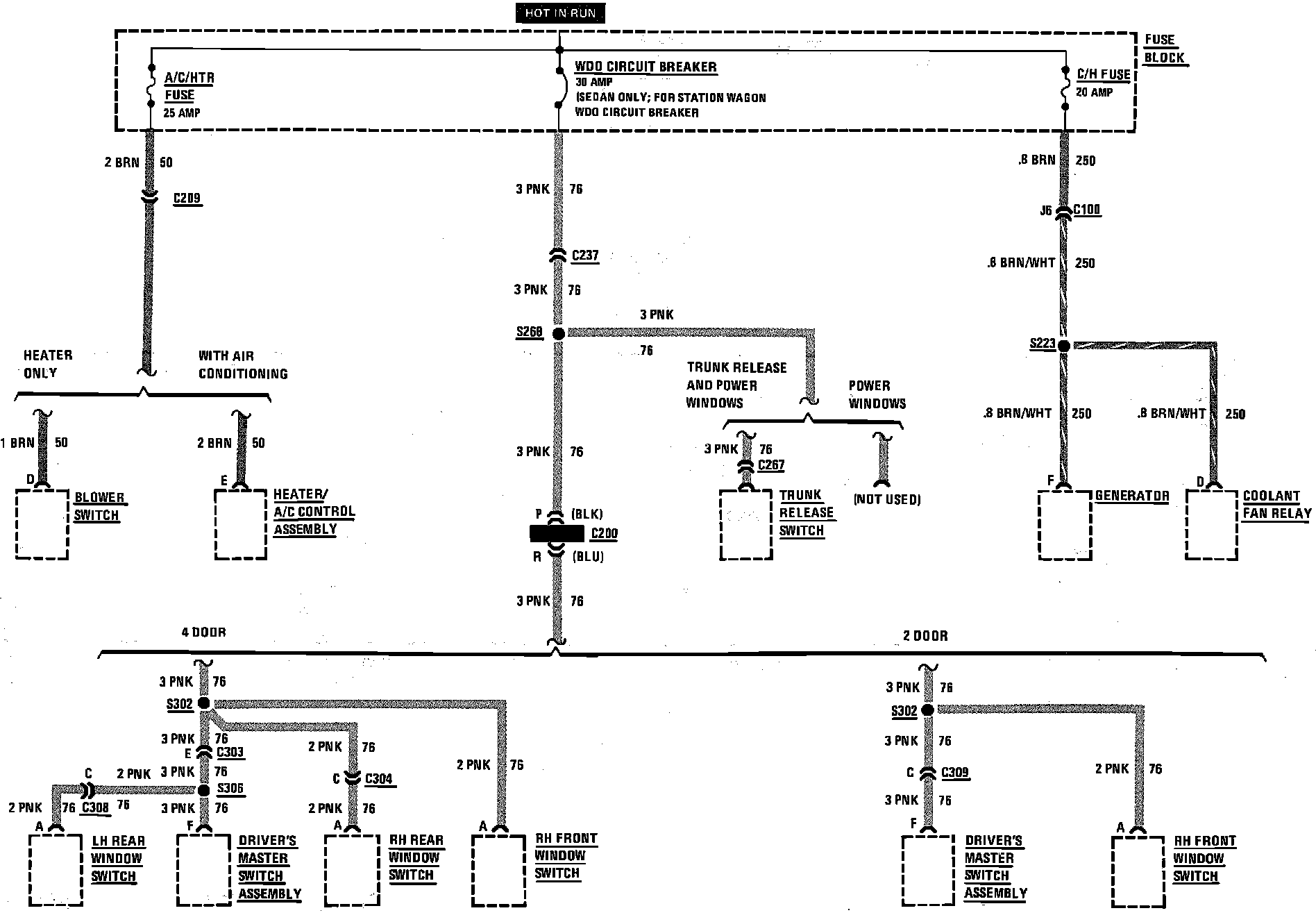

Fuse Block Details (A/C Heater Fuse, C/H Fuse & Window Circuit Breaker):
