Home
>>
Chevrolet
>>
1988
>>
Celebrity L4-151 2.5L
>>
Repair and Diagnosis
>>
Diagrams
>>
Electrical Diagrams
>>
Windows
>>
Power Window Circuit Breaker
>>
Station Wagon Less Power Windows
Station Wagon Less Power Windows

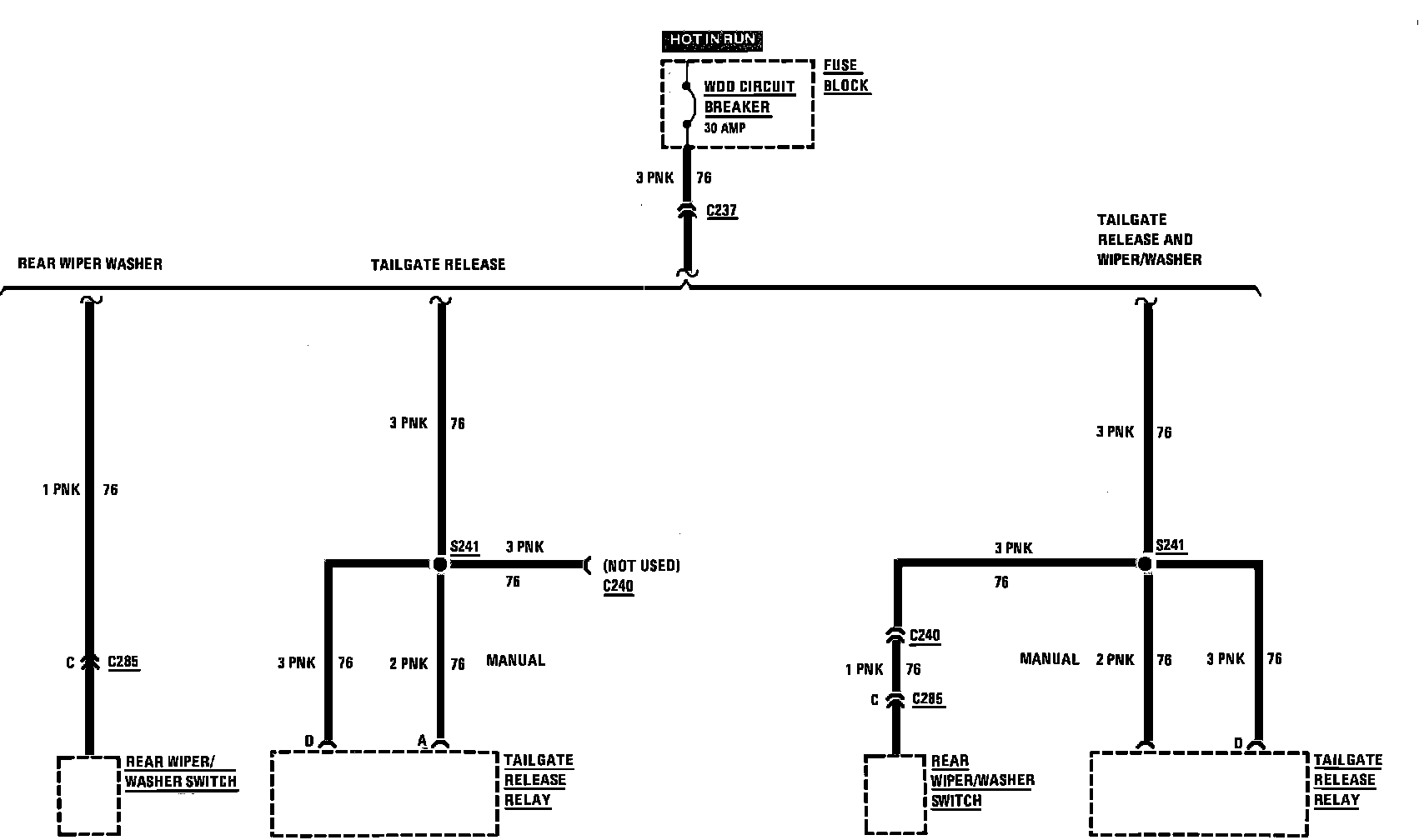

Fuse Block Details (Window Circuit Breaker)Station Wagon Less Power:
