Celebrity L4-151 2.5L
>>
Repair and Diagnosis
>>
Diagrams
>>
Electrical Diagrams
>>
Cooling System
>>
Radiator Cooling Fan Motor
>>
With Air Conditioning
With Air Conditioning

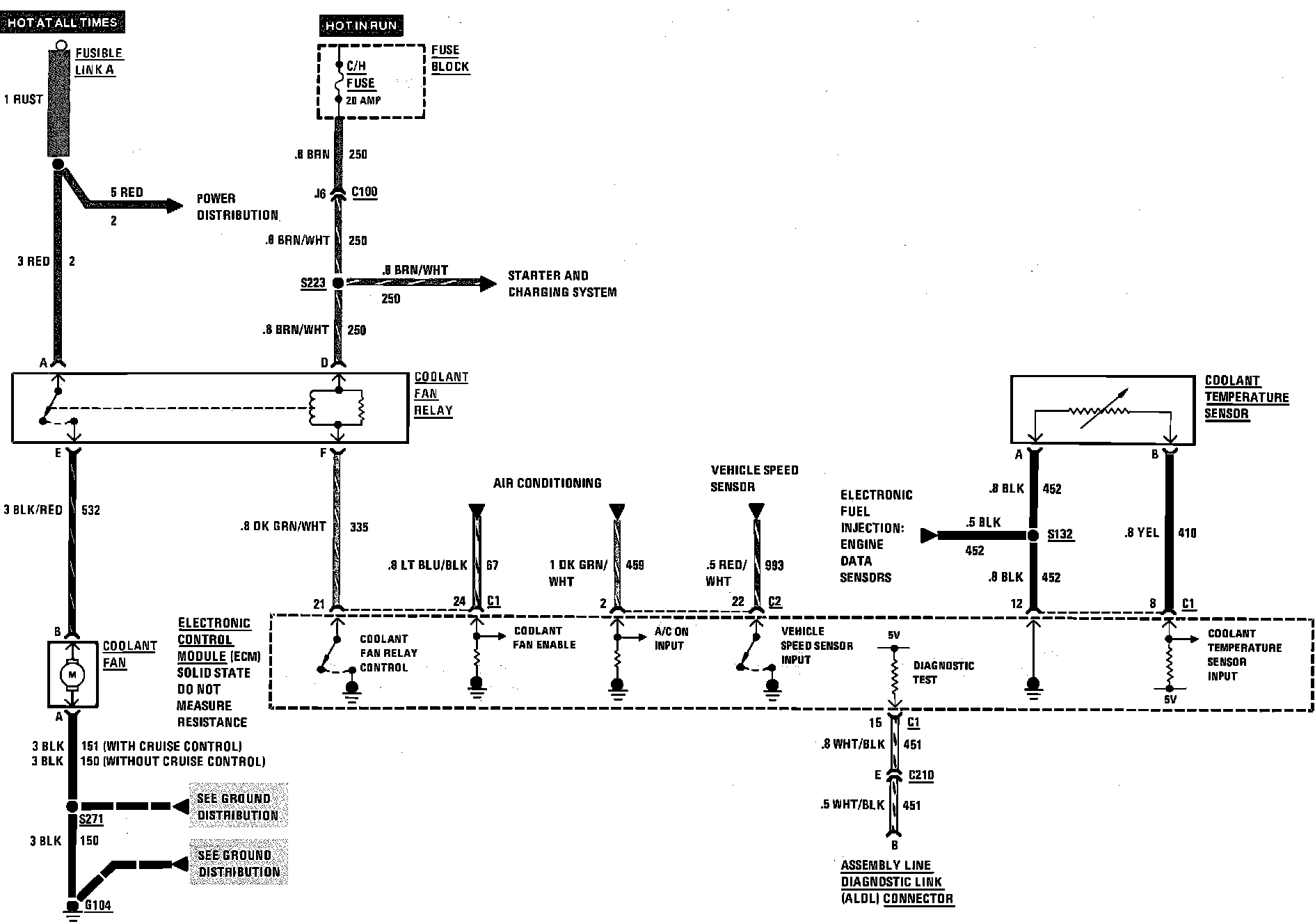

Coolant Fan Wiring Circuit (W/Air Conditioning).:
