Driveaxle - Cross-Groove CV Joint Design
87chevy23Number: 88-89-4C
Section: 4C
Date: DEC., 1987
Subject: CROSS-GROOVE DESIGN CONSTANT
VELOCITY (CV) JOINT
Model and Year: 1988 CAVALIER, CELEBRITY, CORSICA, BERETTA
TO: ALL CHEVROLET DEALERS

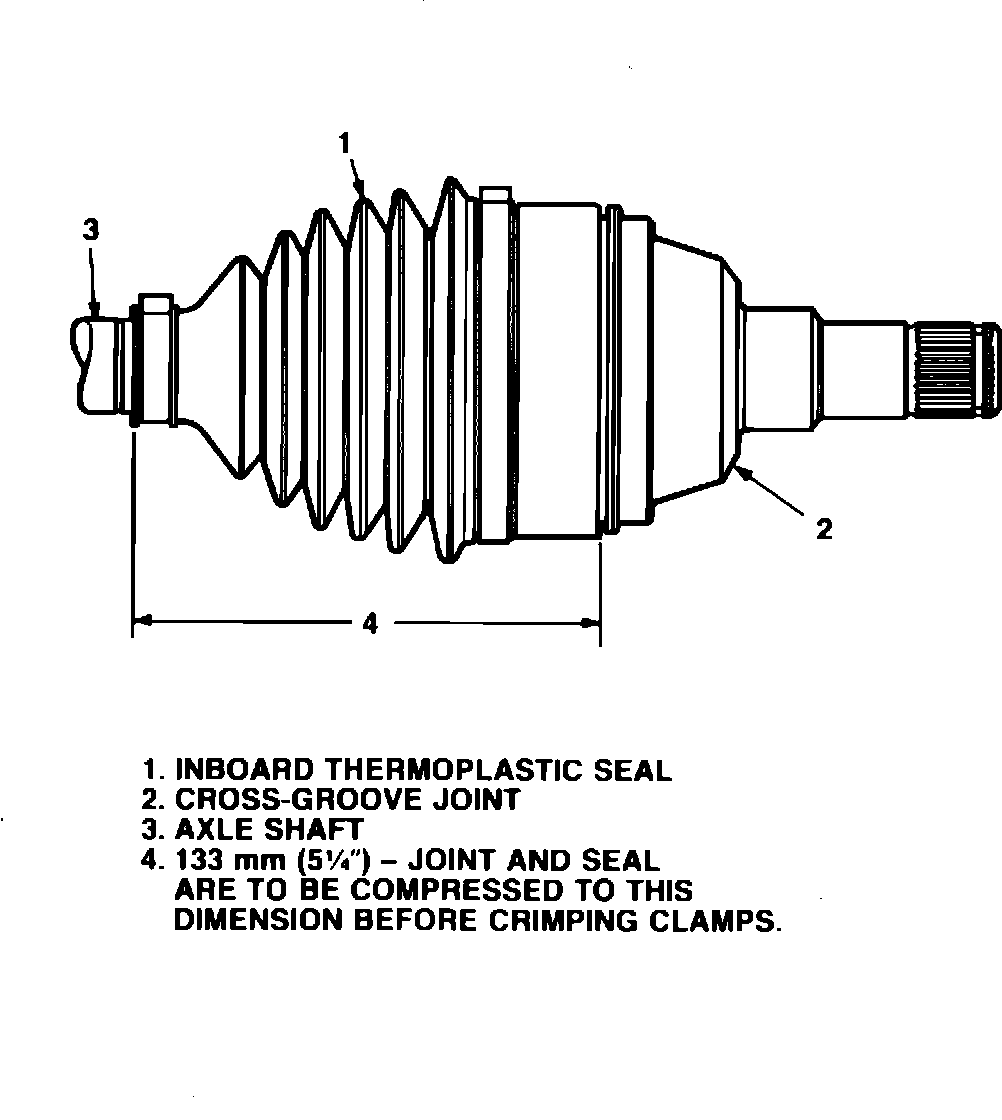

Certain 1988 models with performance oriented combinations of engine, transaxle and Suspension options use a new cross-groove design constant-velocity (CV) joint at the inboard (transaxle) end of the drive axle assembly. The joint can be identified by the cylindrical shape of its outer housing. Refer to the illustration for the proper seal collapse dimension when making repairs to the seal, clamps, or housing assembly.
INVOLVED VEHICLES
MODEL ENGINE TRANSAXLE
Cavalier 2.8L MPFI (VIN W) 5 SP Manual MG2
Beretta/Corsica 2.8L MPFI (VIN W) 5 SP Manual MG2
Beretta/Corsica 2.8L MPFI (VIN W) THM 125C Automatic
Celebrity 2.8L MPFI (VIN W) 5 SP Manual MG2
