Home >> Chevrolet >> 1988 >> Cavalier/Z24 L4-121 2.0L >> Repair and Diagnosis >> Powertrain Management >> Emission Control Systems >> Exhaust Gas Recirculation >> Testing and Inspection

Exhaust Gas Recirculation: Testing and Inspection

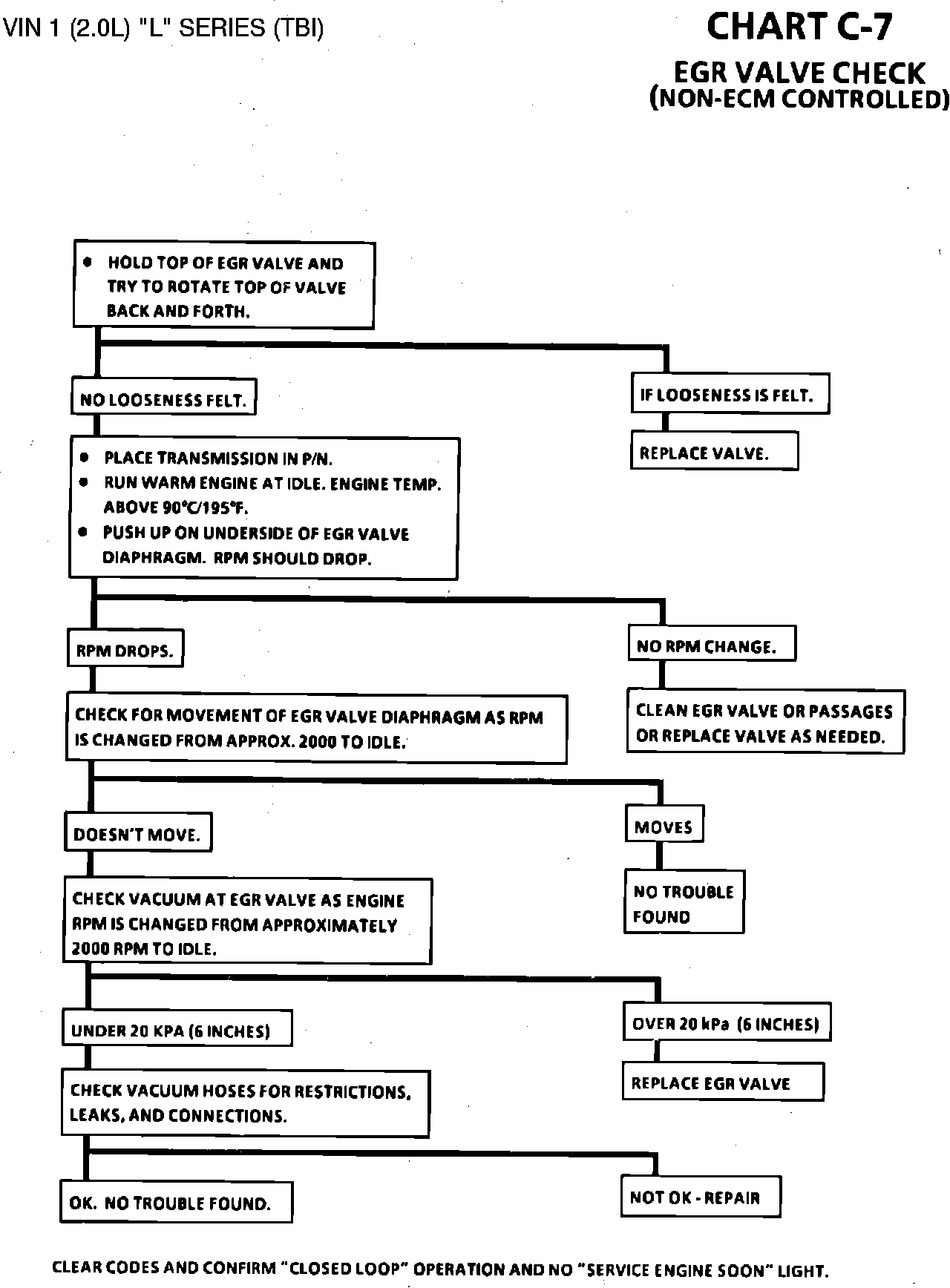

Fig. 079 Chart C-7 EGR Valve Check Non-ECM Controlled:
