Fuse Block Details Wiring Circuit - RS & Z24
>>
Fuse 12
Fuse 12

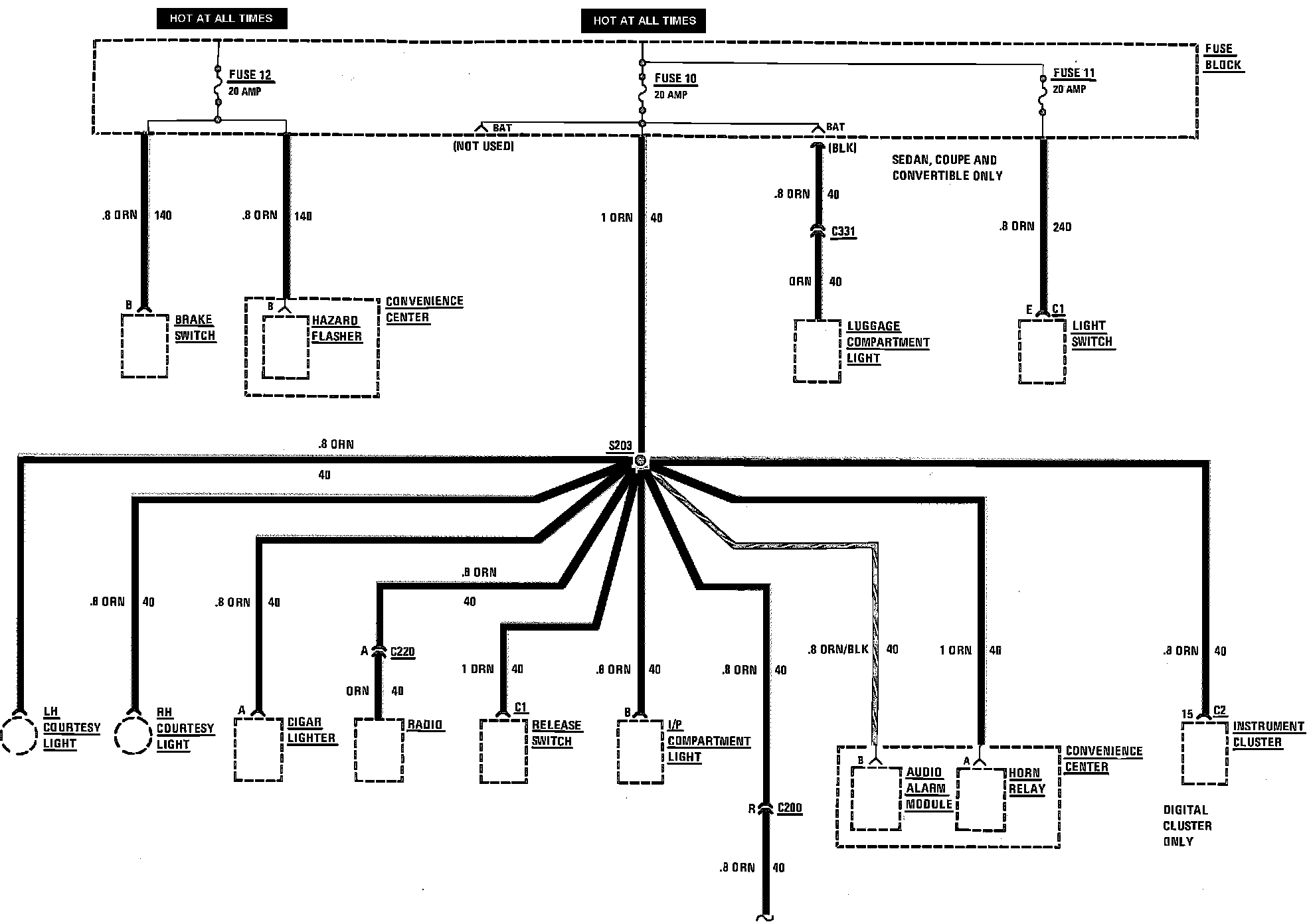

Fuse 10, Fuse 11 & Fuse 12:

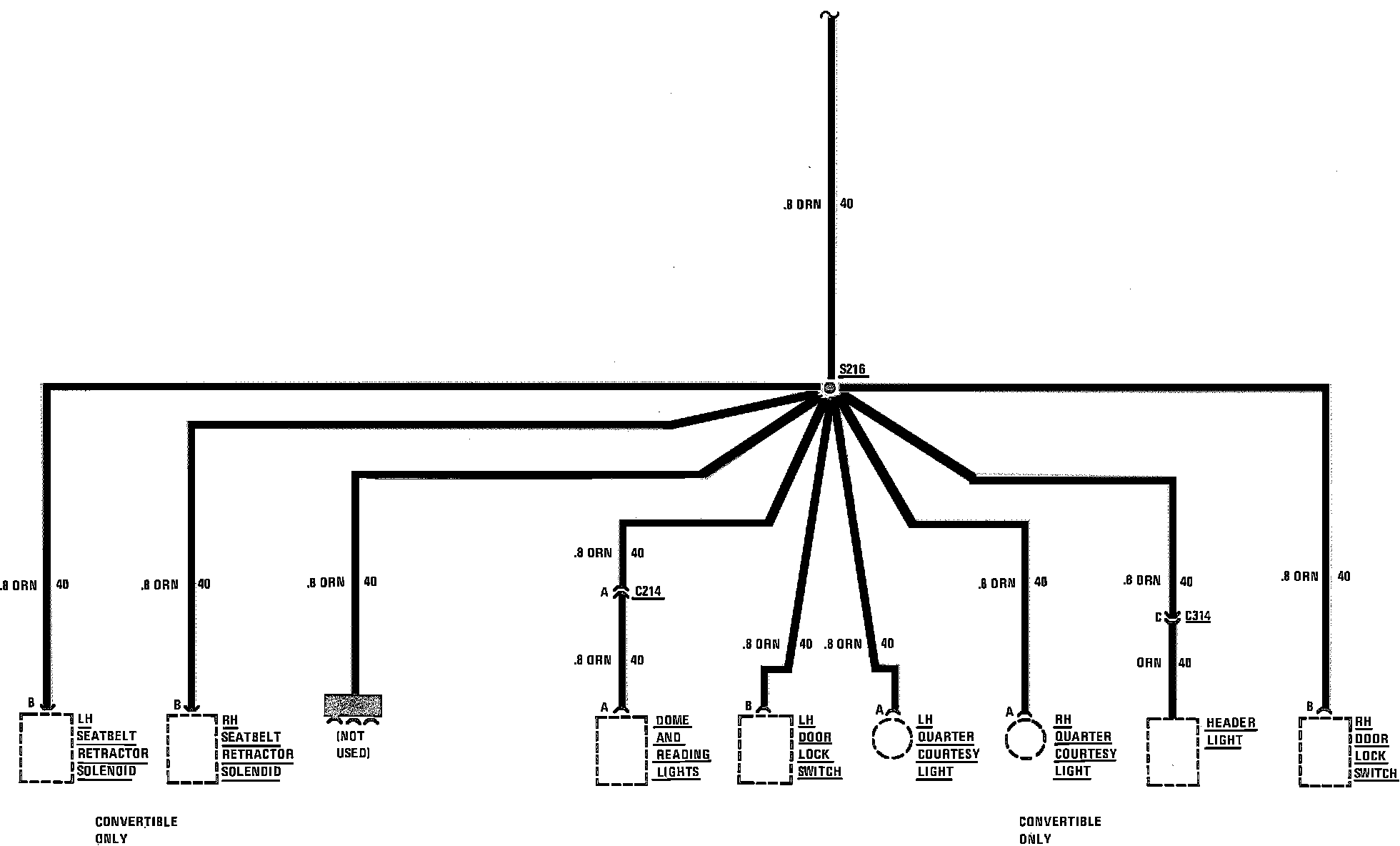

Fuse 10, Fuse 11 & Fuse 12:
