Home
>>
Chevrolet
>>
1988
>>
Cavalier/Z24 L4-121 2.0L
>>
Repair and Diagnosis
>>
Lighting and Horns
>>
Trunk Lamp
>>
Diagrams
>>
Electrical Diagrams
Electrical Diagrams

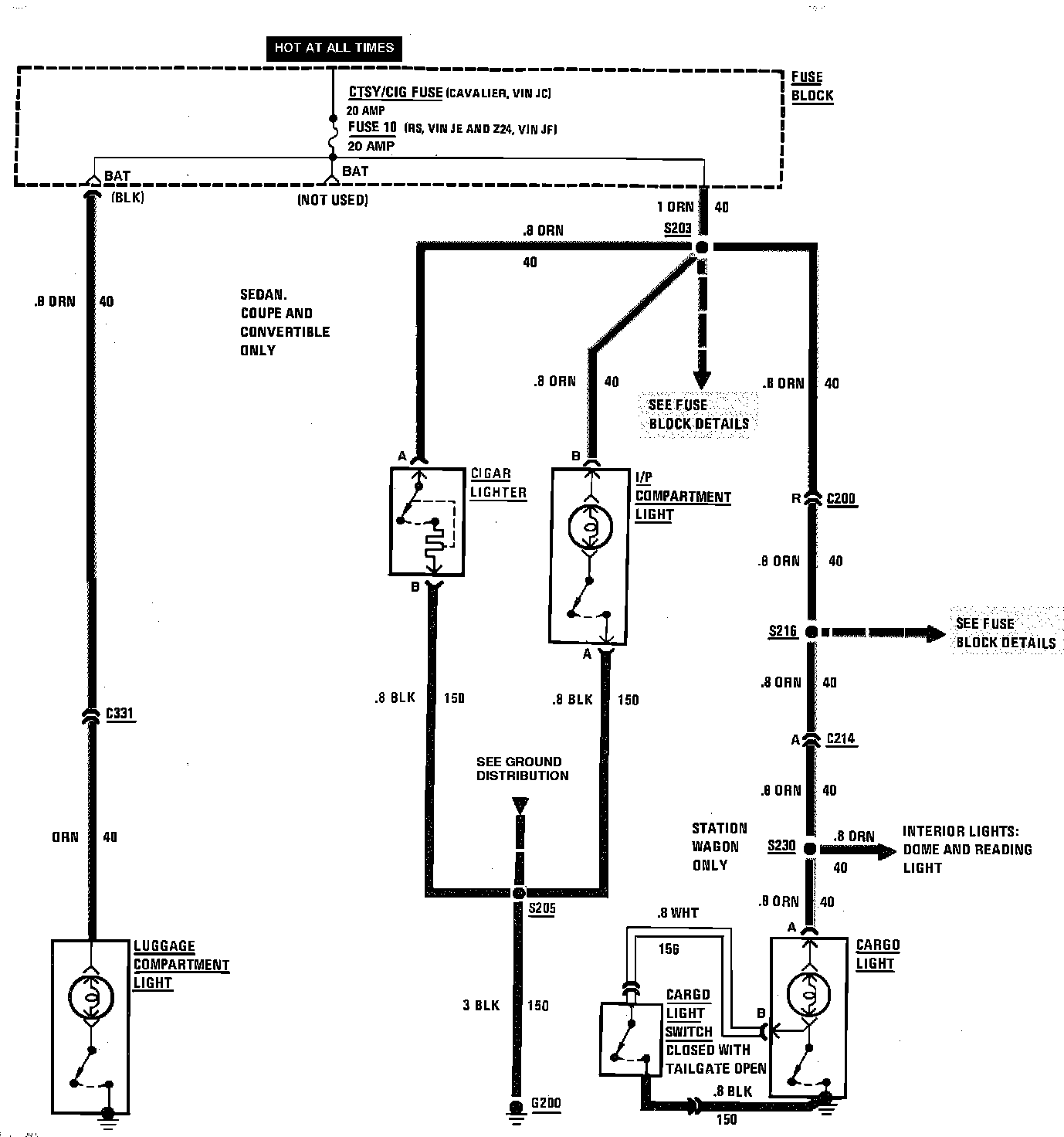

Cigarette Lighter, I/P, Luggage & Cargo Compartment:
