Home >> Chevrolet >> 1988 >> Cavalier/Z24 L4-121 2.0L >> Repair and Diagnosis >> Diagrams >> Electrical Diagrams >> Powertrain Management >> System Diagram >> Power Distribution - Exc. RS & Z24 >> ECM Fuse & Turn Back-Up

ECM Fuse & Turn Back-Up

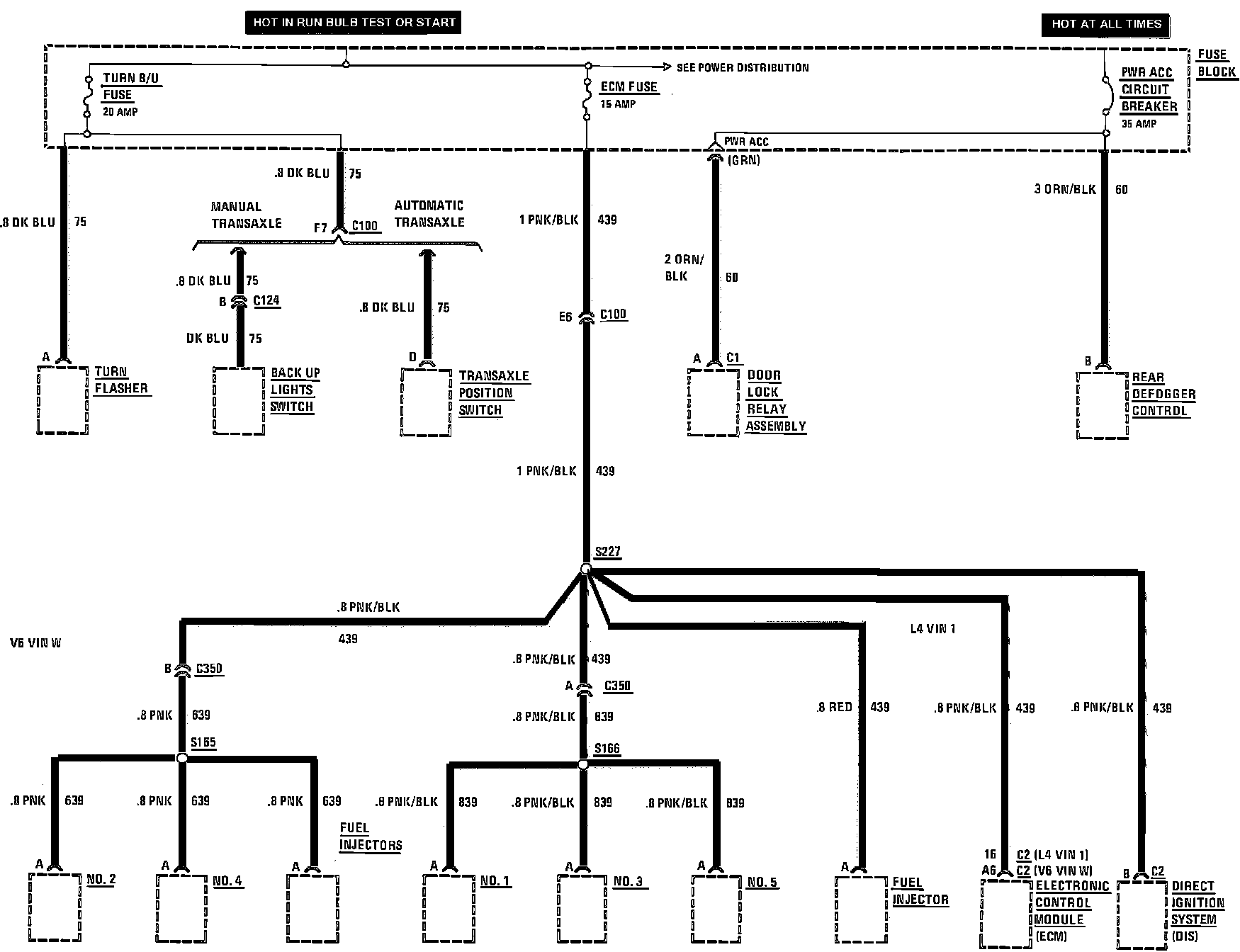

Power Accessory Circuit Breaker, ECM Fuse & Turn Back-Up Fuse:
