Home
>>
Chevrolet
>>
1988
>>
Caprice V8-350 5.7L
>>
Repair and Diagnosis
>>
Diagrams
>>
Electrical Diagrams
>>
Power and Ground Distribution
>>
Fuse
>>
Courtesy/Clock Fuse
Courtesy/Clock Fuse

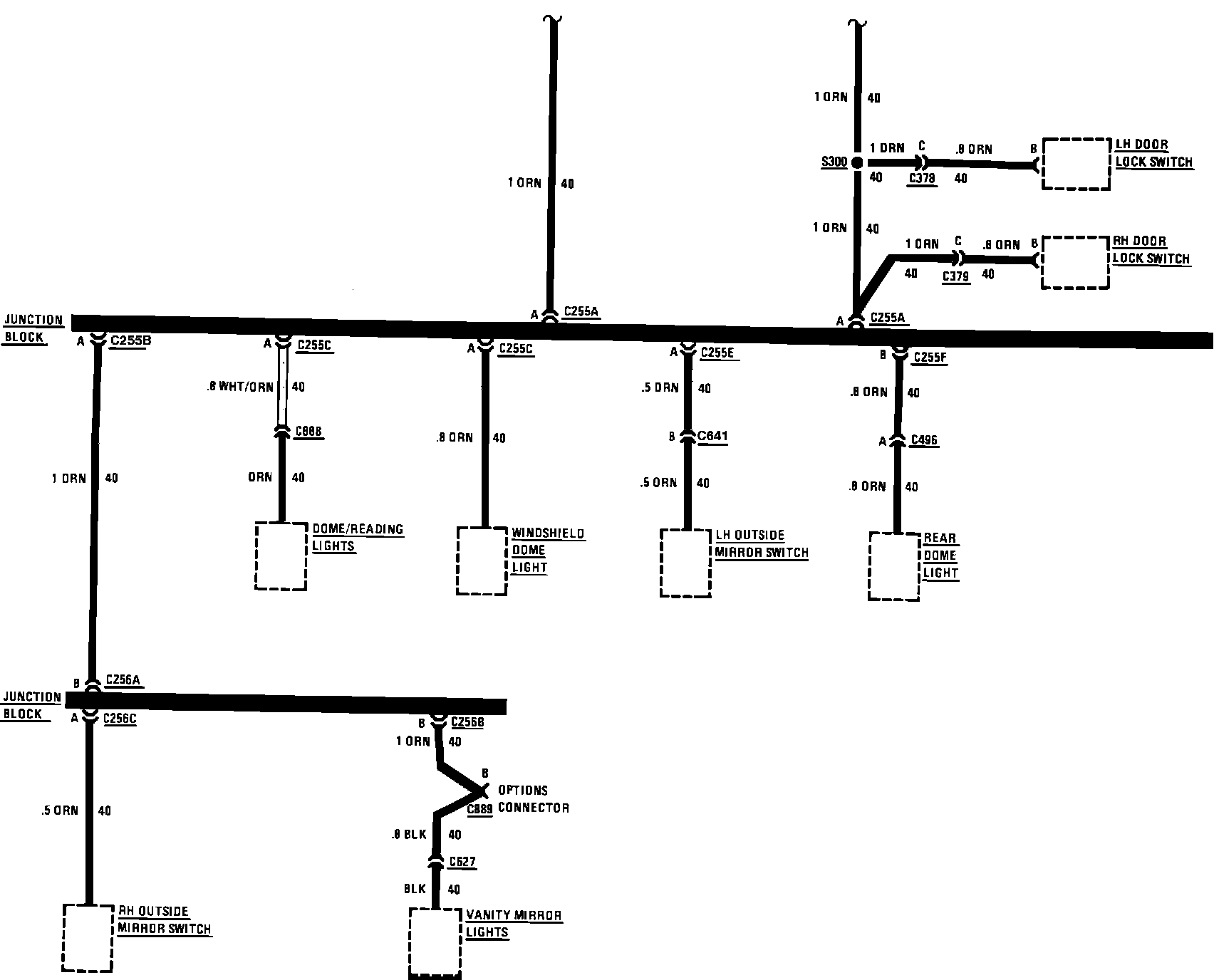

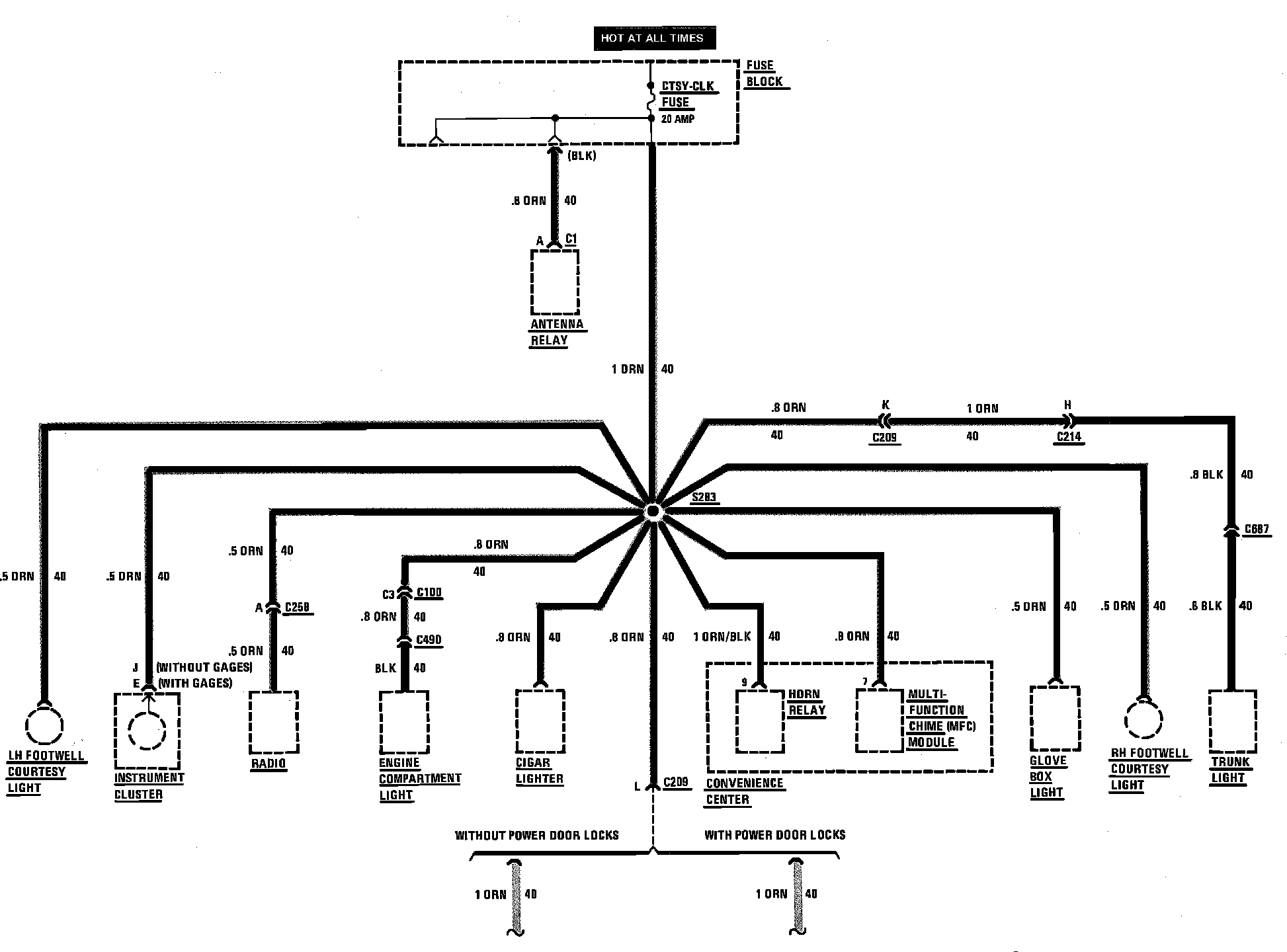

Courtesy/Clock Fuse:
Courtesy/Clock Fuse:
