Power Distribution Wiring Circuit
Power Distribution Wiring Circuit

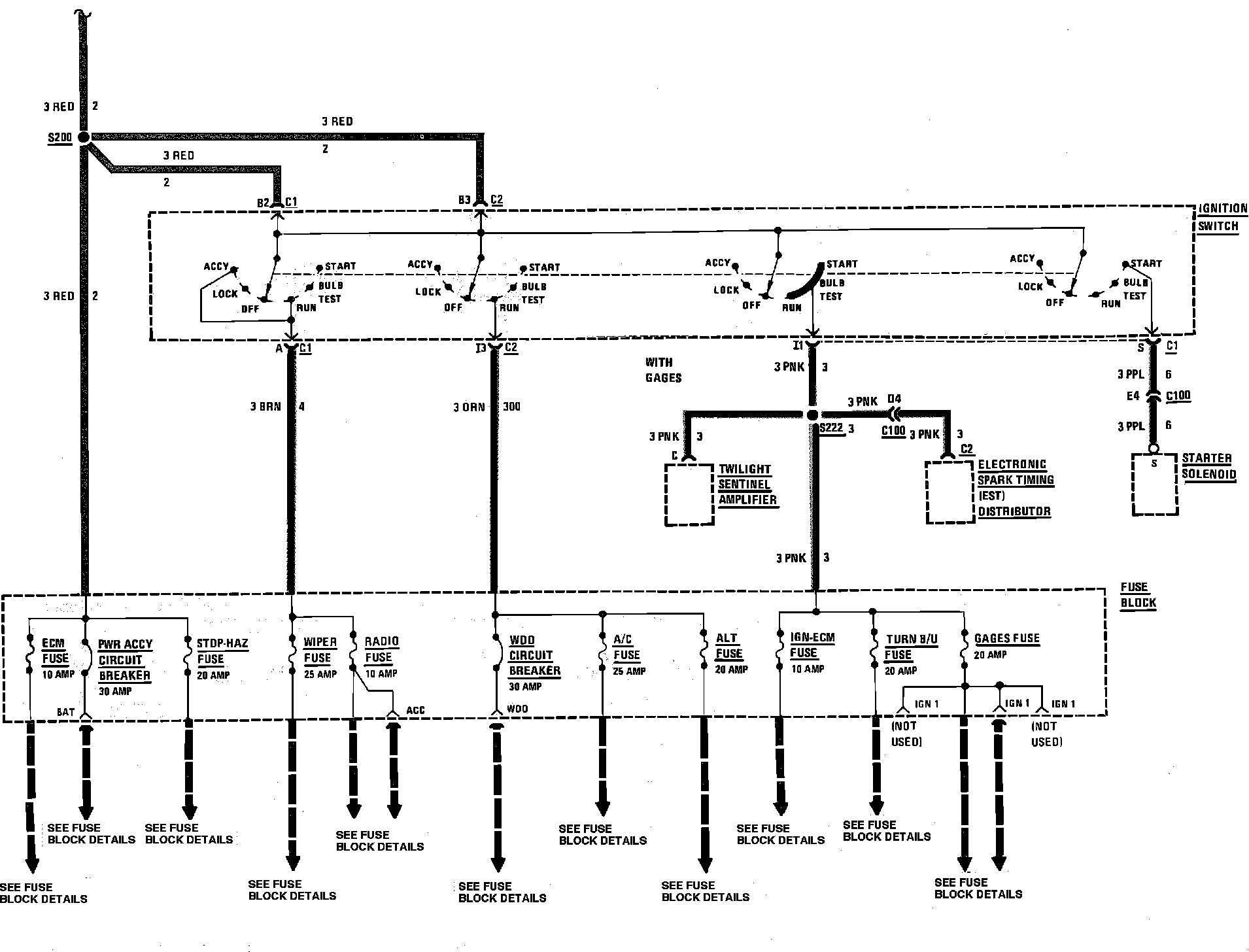

Power Distribution Wiring Circuit:

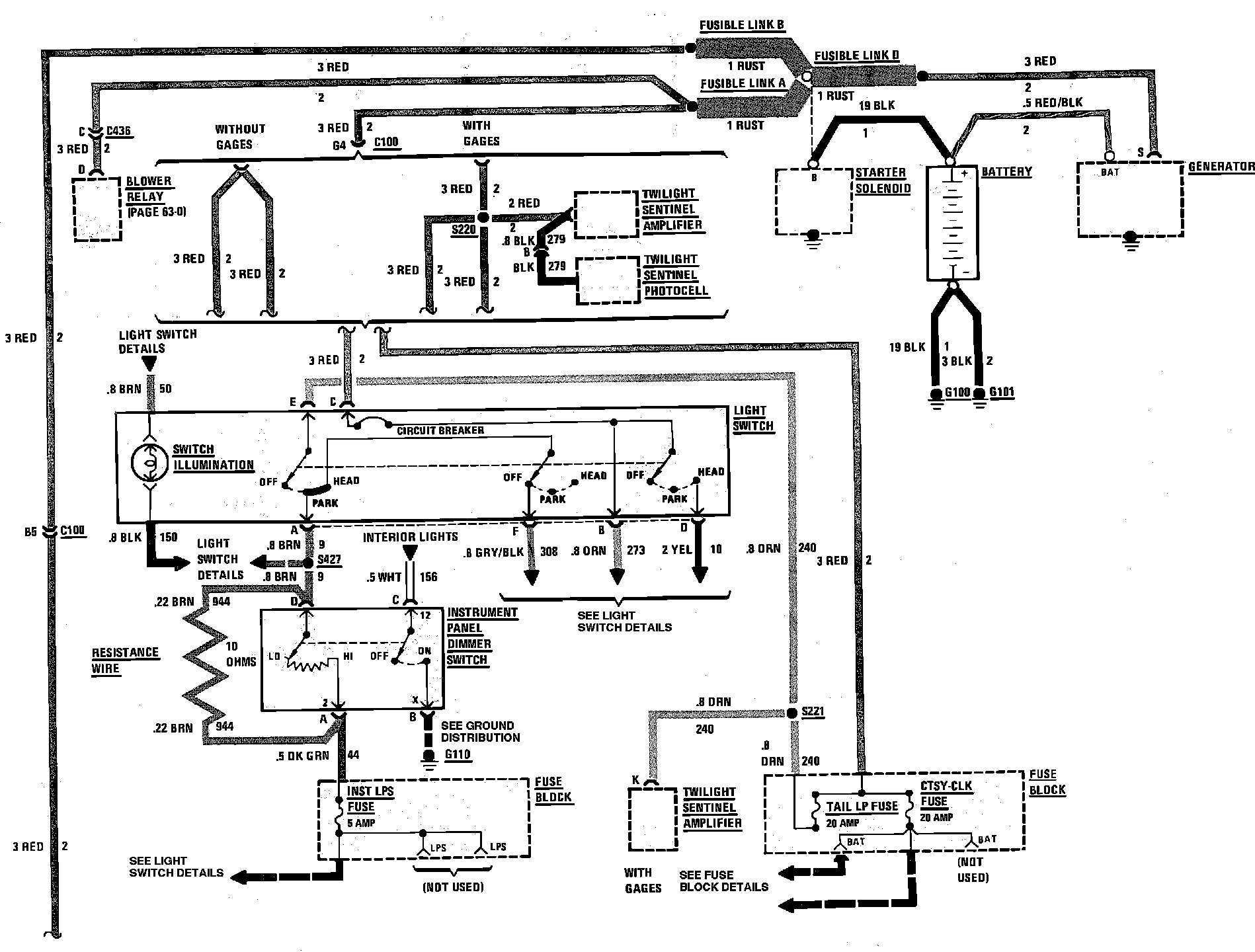

Power Distribution Wiring Circuit:
