Home
>>
Chevrolet
>>
1988
>>
Caprice V8-305 5.0L
>>
Repair and Diagnosis
>>
Diagrams
>>
Electrical Diagrams
>>
Wiper and Washer Systems
>>
With Pulse
With Pulse

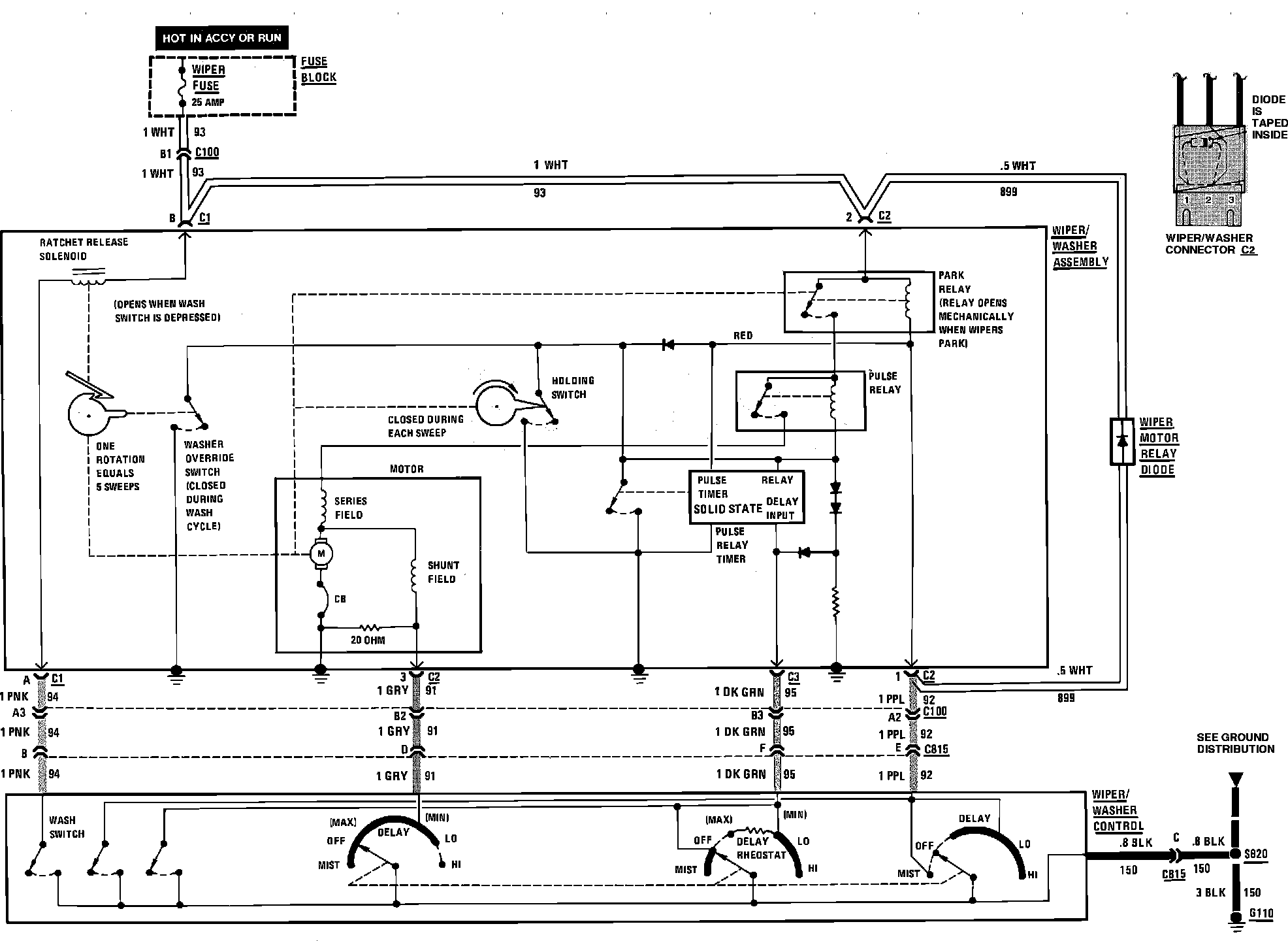

Wiper/Washer Wiring Circuit (W/Pulse):
