Page 700-R4-57

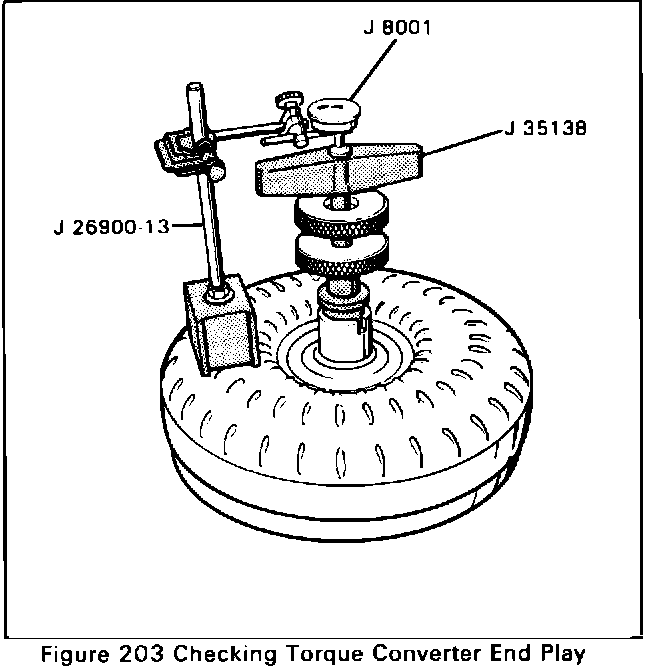

Measure (Figure 203)

Tool Required:
J-35138 Torque Converter End Play Checking Tool

^ Install J-35138 and measure end play
- 0mm - .5mm (.020") for 245mm Torque Converters
- 0mm - .6mm (.024") for 298mm Torque Converters
The Torque Converter Should Not Be Replaced If:
^ The fluid has an odor, discolored or no evidence of metal or clutch plate material
- Drain out as much fluid as possible
- Replace the oil filter and pan gasket
- Fill to proper level (Refer to Section 7A)
^ The converter bolt hole threads are damaged
- Correct with thread insert (Refer to Section 6A) Flushing the torque converter is not recommended.

vInstall or Connect

1. Torque converter (1)
2. J-21366 converter holding strap
3. Remove transmission from holding fixture
