Chevrolet
>>
1988
>>
Caprice V6-262 4.3L
>>
Repair and Diagnosis
>>
Powertrain Management
>>
Relays and Modules - Powertrain Management
>>
Relays and Modules - Fuel Delivery and Air Induction
>>
Fuel Pump Relay
>>
Diagrams
>>
Electrical Diagrams
Electrical Diagrams
Fig. 148 - WIRING DIAGRAM for Chart A-7 Fuel System Diagnosis. VIN Z:

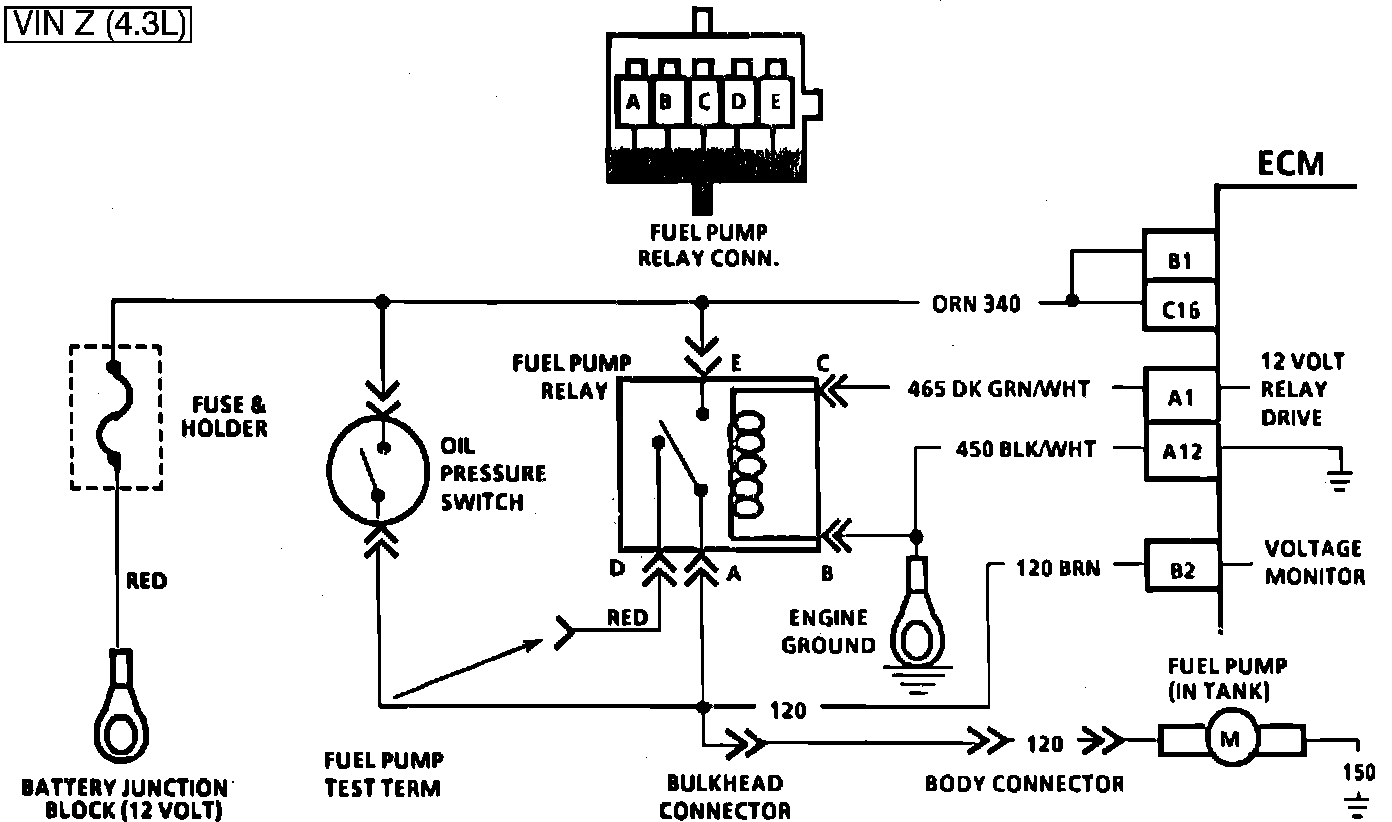

Fig. 104 - Wiring Diagram for Code 54 Fuel Pump Relay Circuit. VIN Z:
