Torque Converter Clutch & Vehicle Speed Sensor (VSS)
Torque Converter Clutch & Vehicle Speed Sensor (VSS)

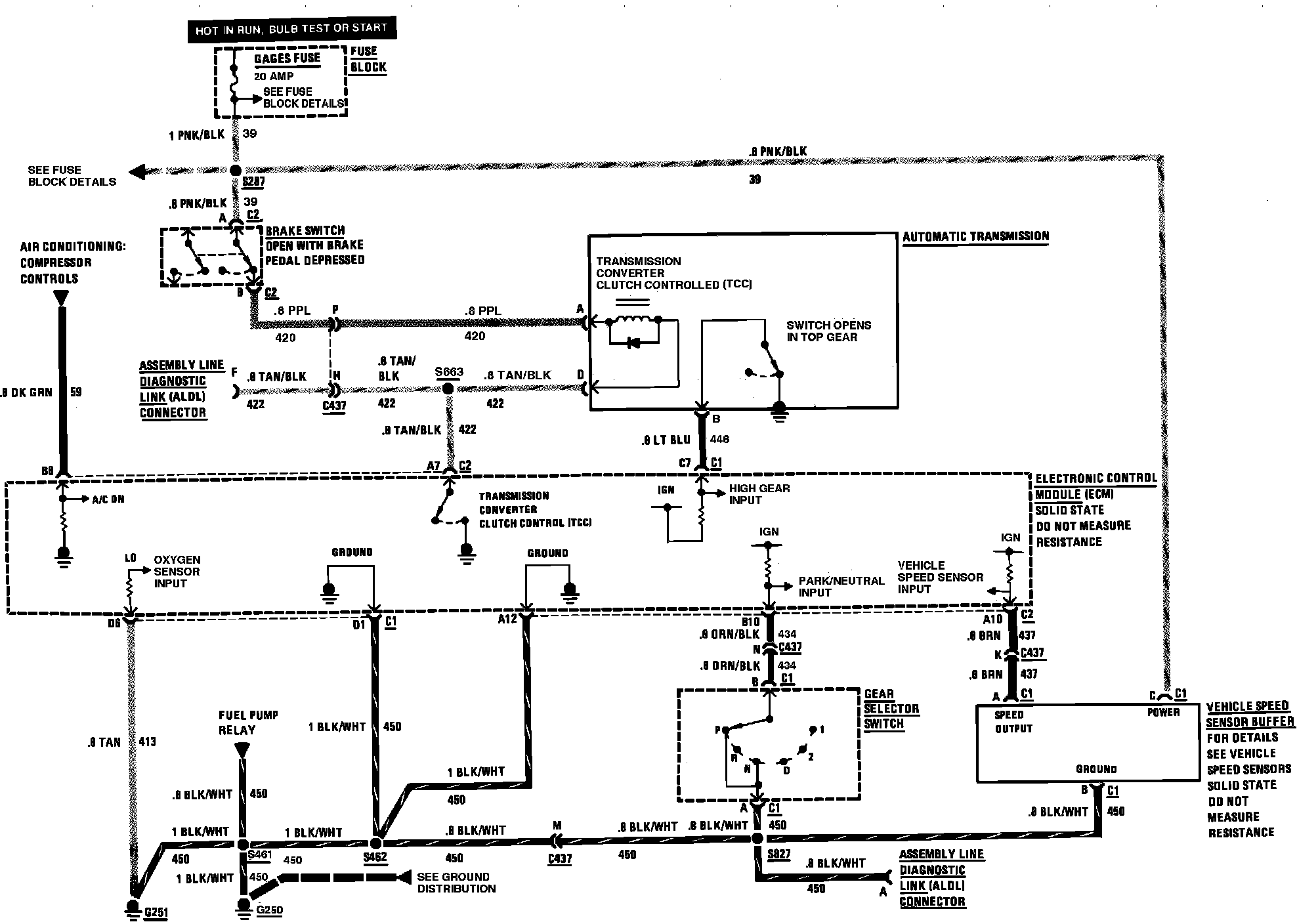

Torque Converter Clutch & Vehicle Speed Sensors:
