Caprice V6-262 4.3L
>>
Repair and Diagnosis
>>
Power and Ground Distribution
>>
Fuse
>>
Diagrams
>>
Electrical Diagrams
>>

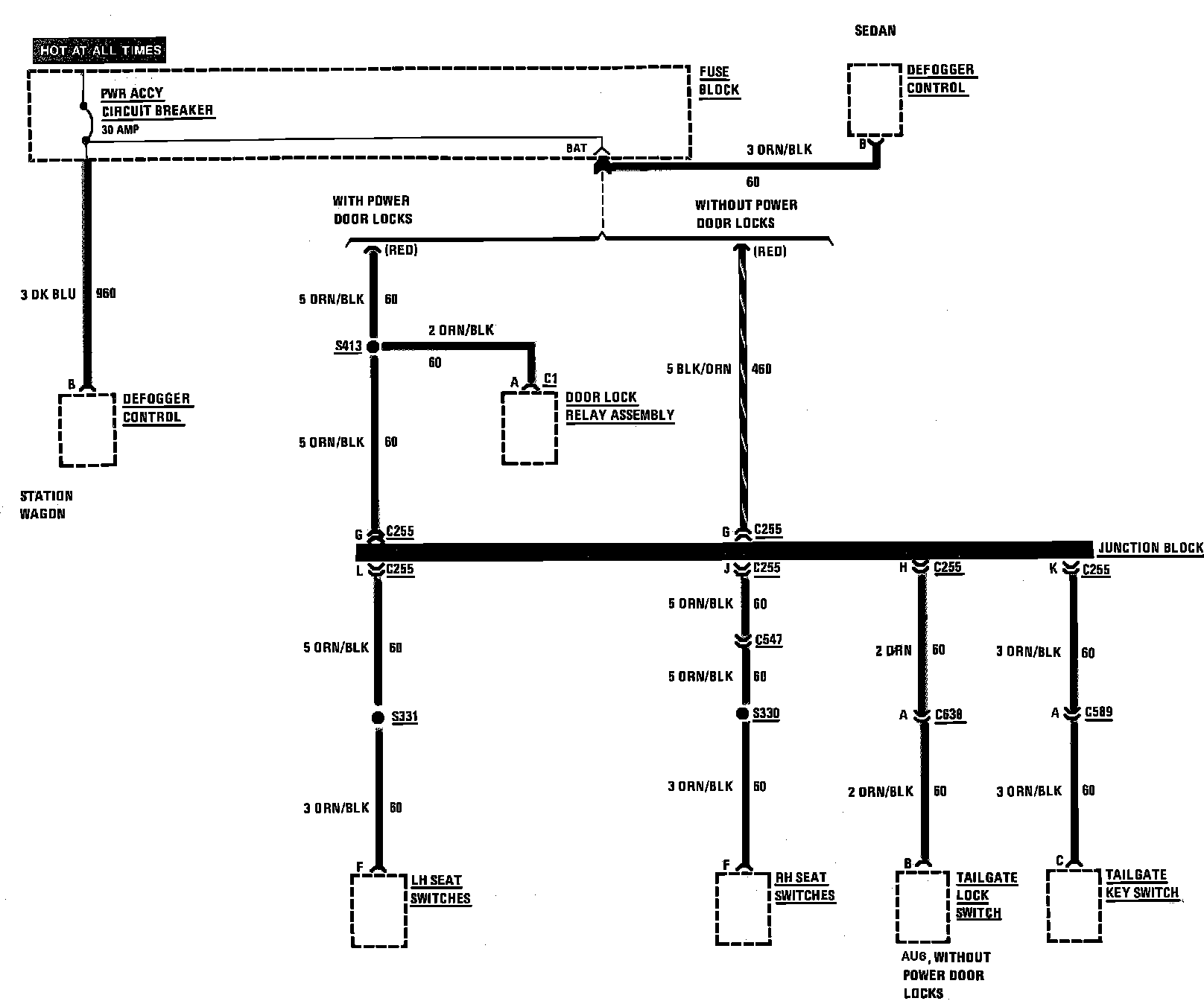

Power Accessory Circuit Breaker
Power Accessory Circuit Breaker
Power Accessory Circuit Breaker:
