Home >> Chevrolet >> 1988 >> Caprice V6-262 4.3L >> Repair and Diagnosis >> Diagrams >> Electrical Diagrams >> Lighting and Horns >> System Diagram >> Light Switch Details >> Less Twilight Sentinel

Less Twilight Sentinel

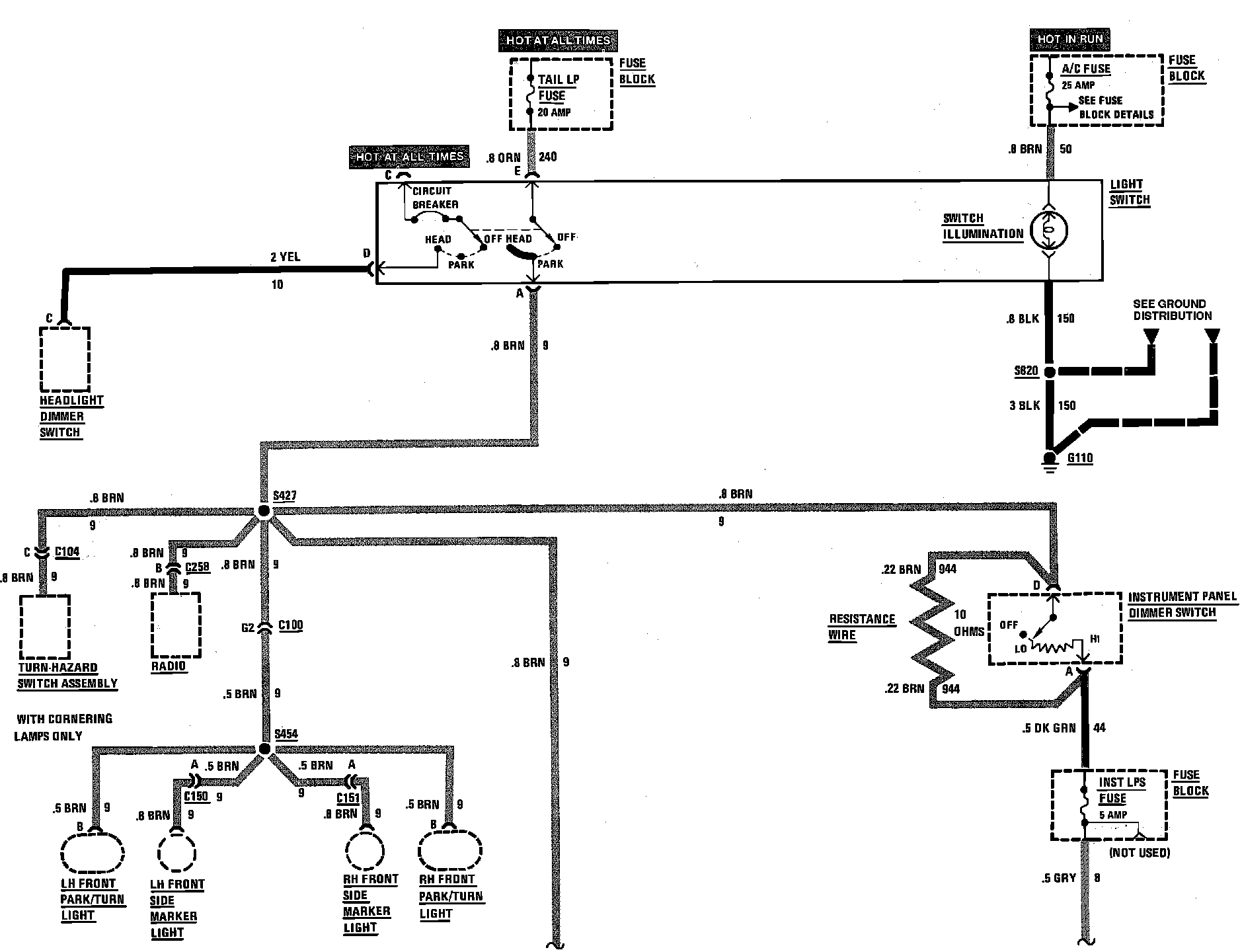

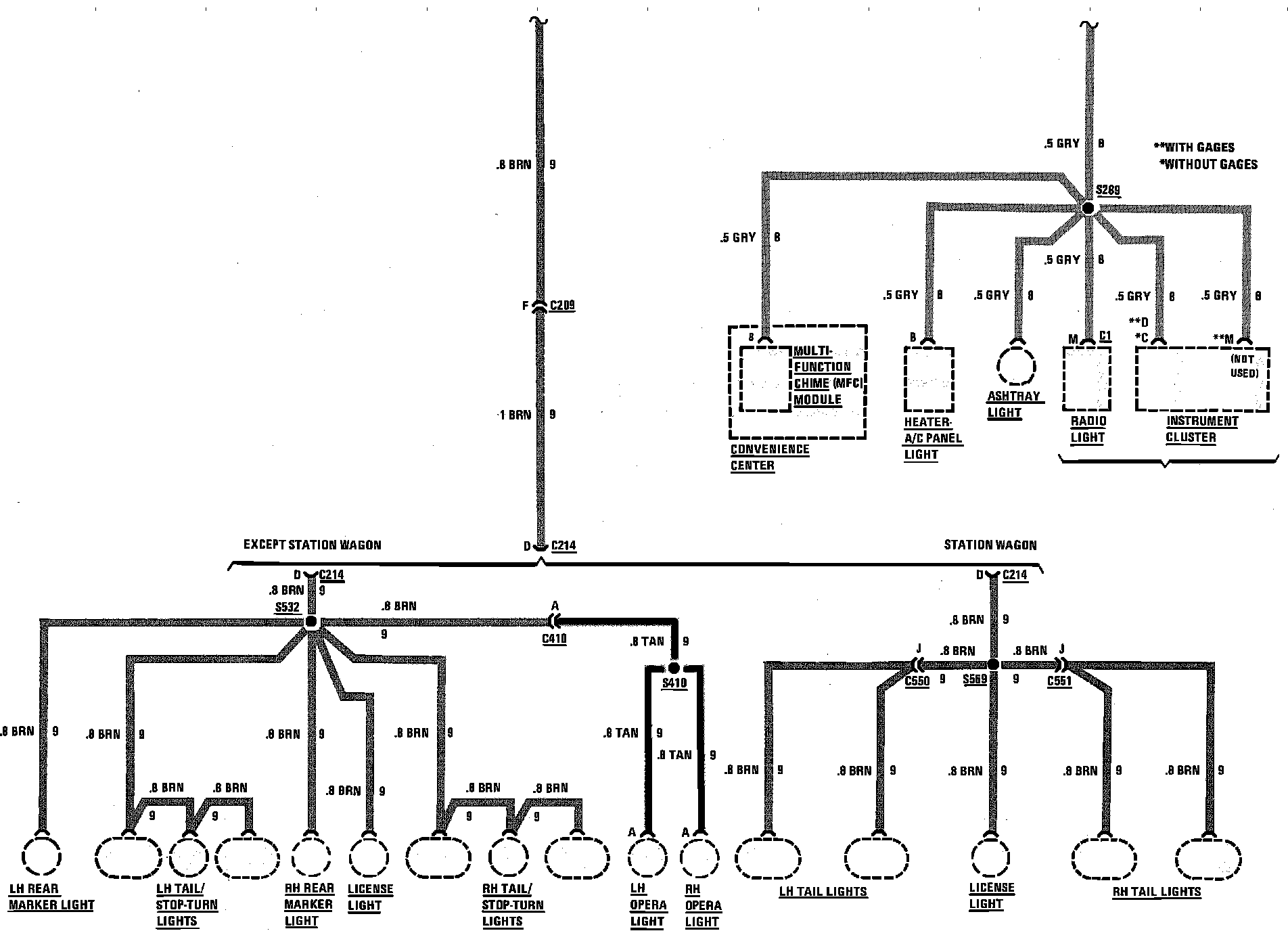

Lights Switch Details (Less Twilight Sentinel):



Lights Switch Details (Less Twilight Sentinel):
