Home >> Chevrolet >> 1988 >> Caprice V6-262 4.3L >> Repair and Diagnosis >> Diagrams >> Electrical Diagrams >> Heated Glass Element >> Defogger Wiring Circuit (Wagon)

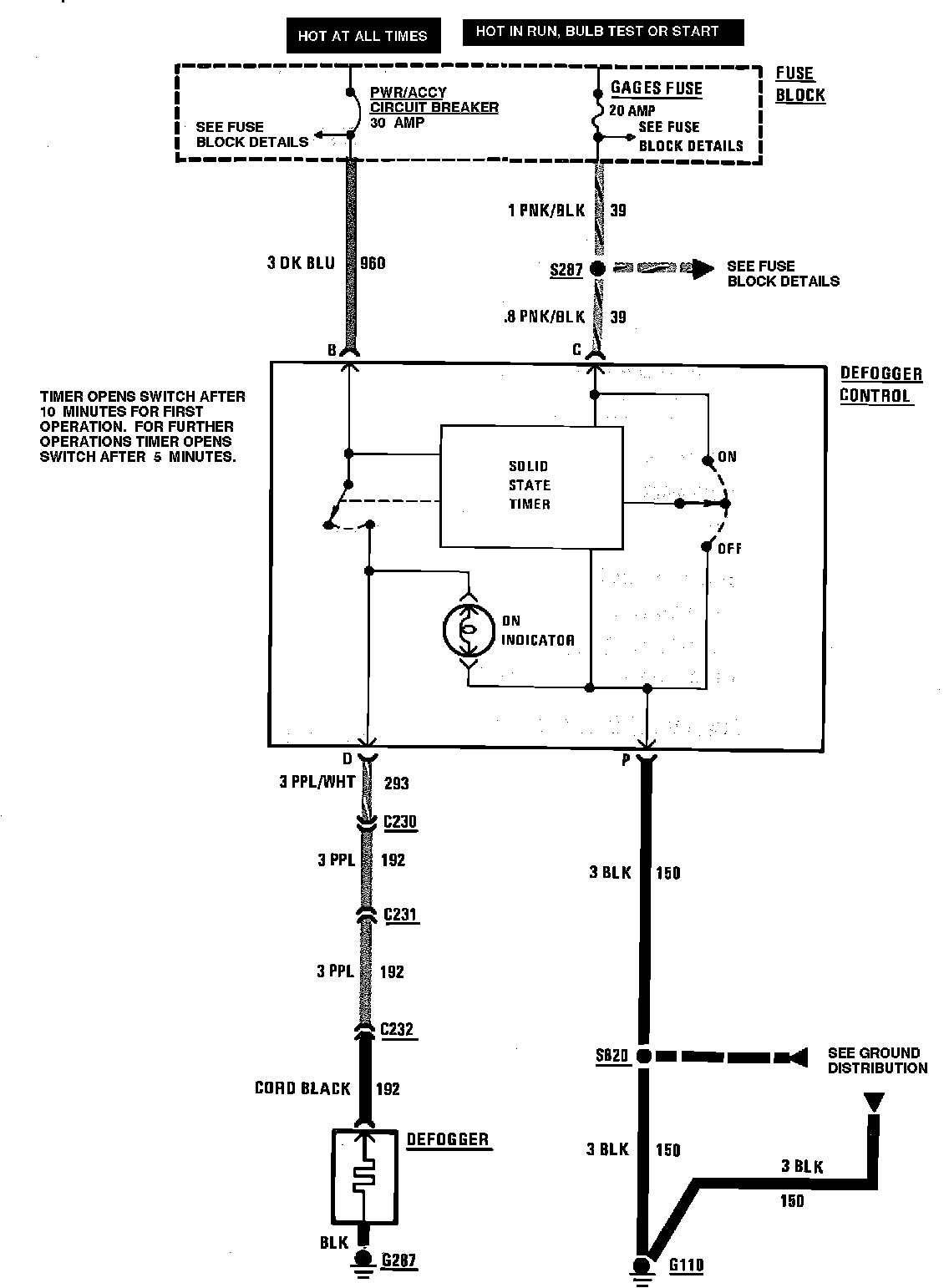

Defogger Wiring Circuit (Wagon)

Defogger Wiring Circuit:
