Hydraulic Unit

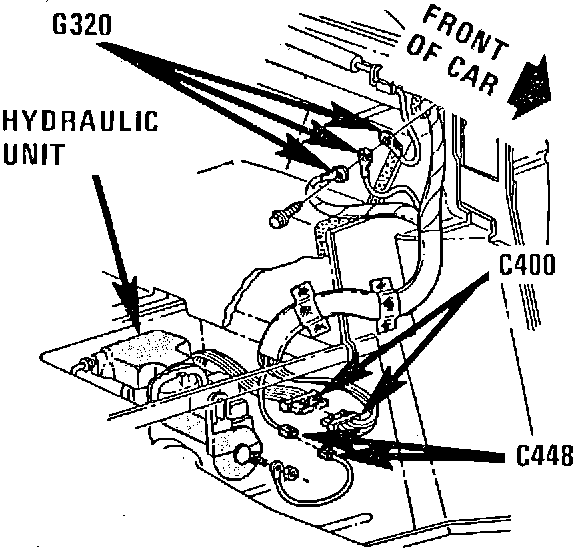

Hydraulic Unit
LH Side Of Cargo Compartment:
ABS Harness, Underneath LH Rear Compartment
