Home
>>
Chevrolet
>>
1987
>>
Chevette L4-98 1.6L
>>
Repair and Diagnosis
>>
Powertrain Management
>>
Computers and Control Systems
>>
Malfunction Indicator Lamp
>>
Diagrams
>>
Electrical Diagrams
Electrical Diagrams

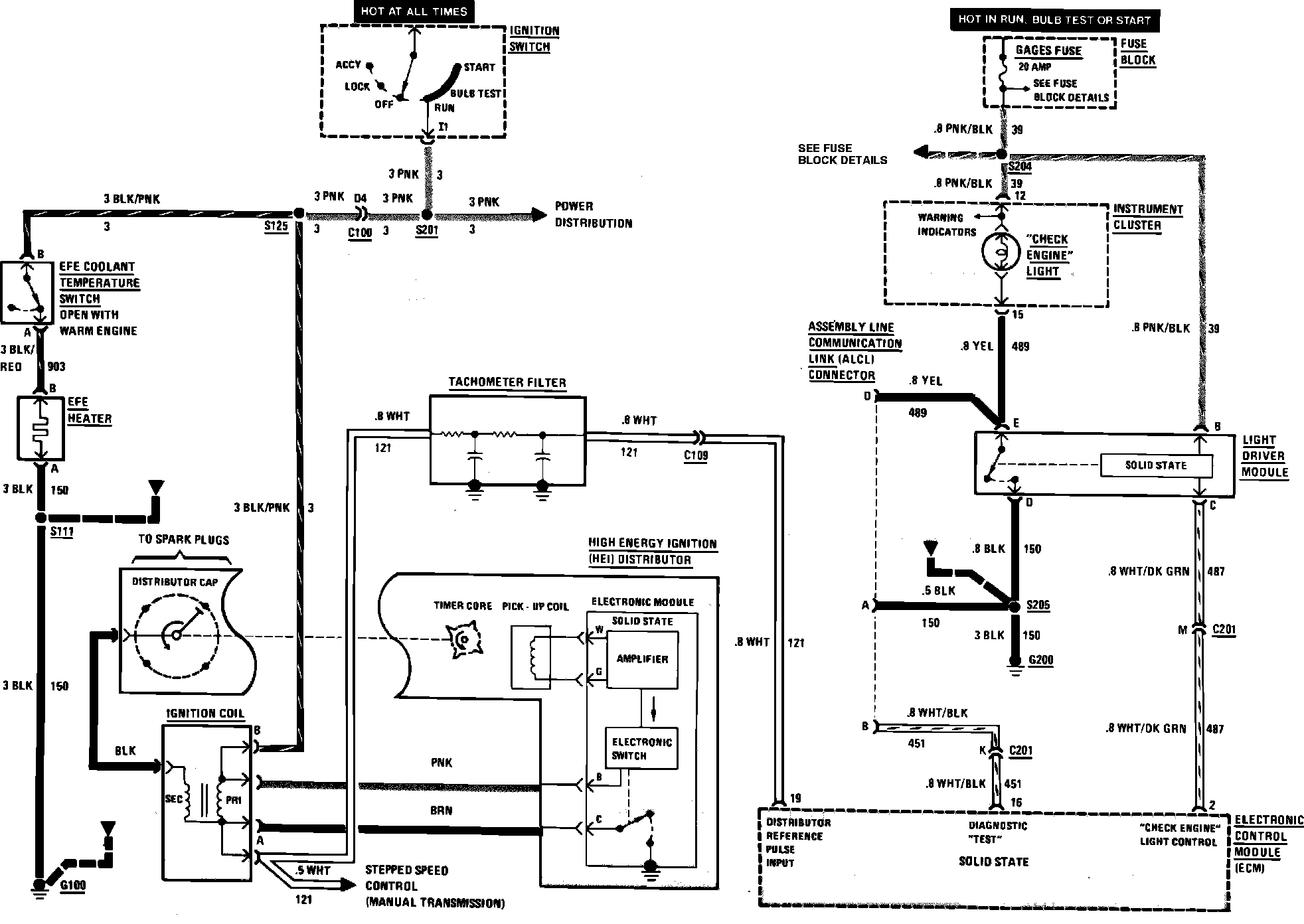

Computer Command Control (Check Engine, Early Fuel Evaporation & Ignition):
