Chevrolet
>>
1987
>>
Chevette L4-98 1.6L
>>
Repair and Diagnosis
>>
Diagrams
>>
Electrical Diagrams
>>
Powertrain Management
>>
System Diagram
>>
Stepped Speed Control
>>
With Air Conditioning
>>
With Automatic Transmission
With Automatic Transmission

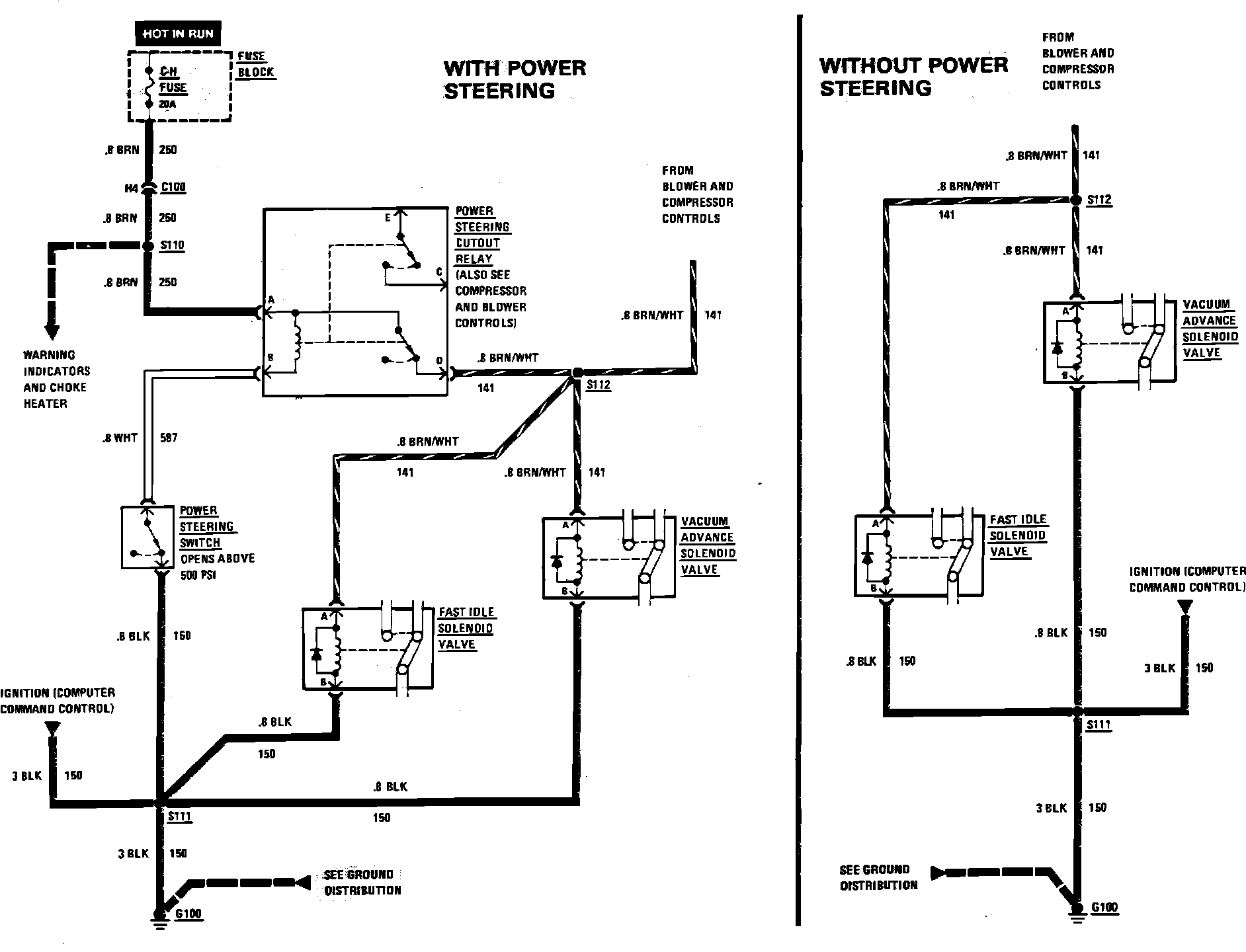

Computer Command Control (Stepped Speed Control) Wiring Circuit With Air Conditioning & Automatic Transmission:
