Fuel Control & Service Engine Soon Indicator
Fuel Control & Service Engine Soon Indicator

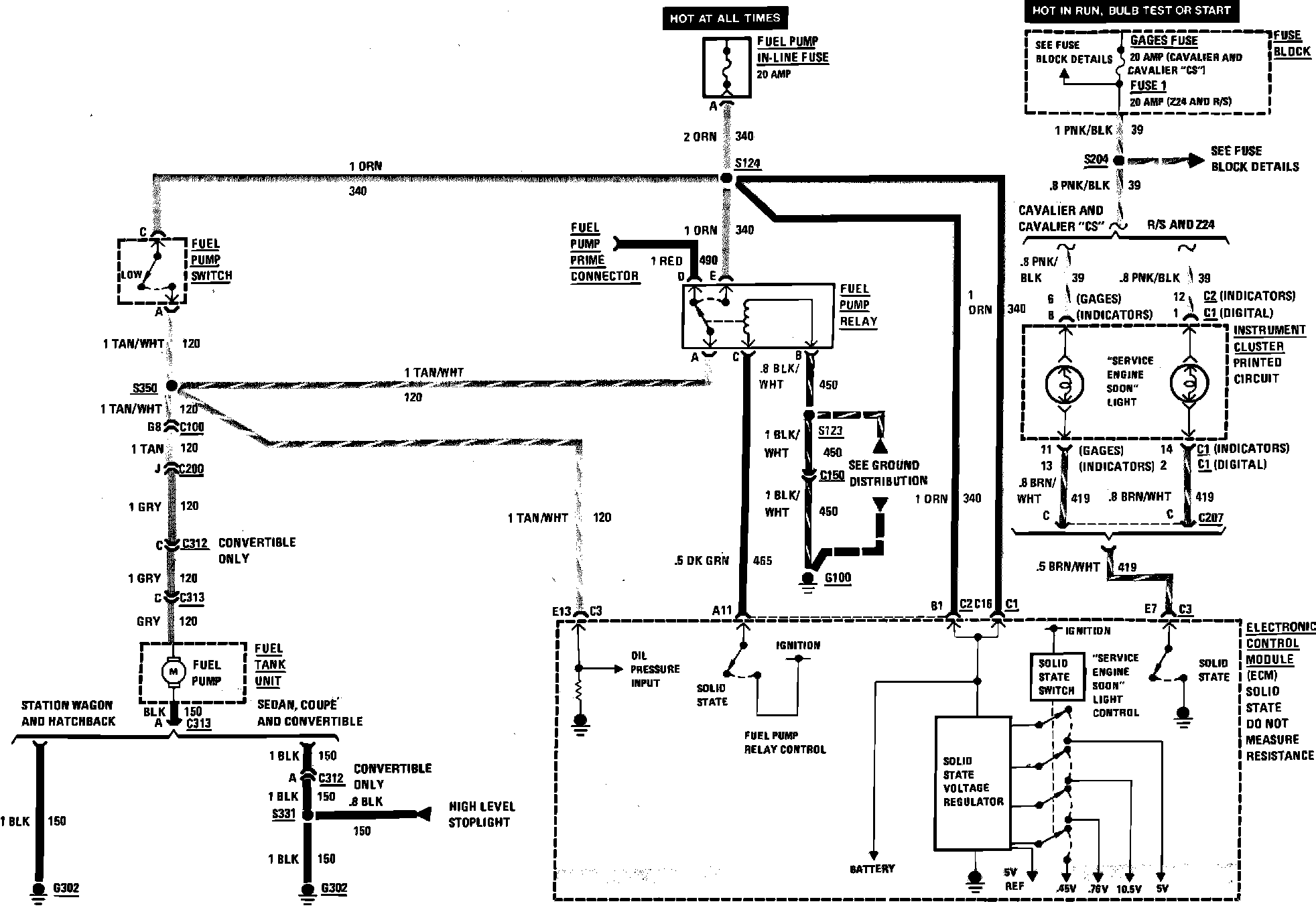

Fig. 292 Throttle Body Injection Wiring Circuit (Fuel Control & Service Engine Soon Light W/4-121/2.0L Engine:
