Cooling System
>>
System Diagram
System Diagram

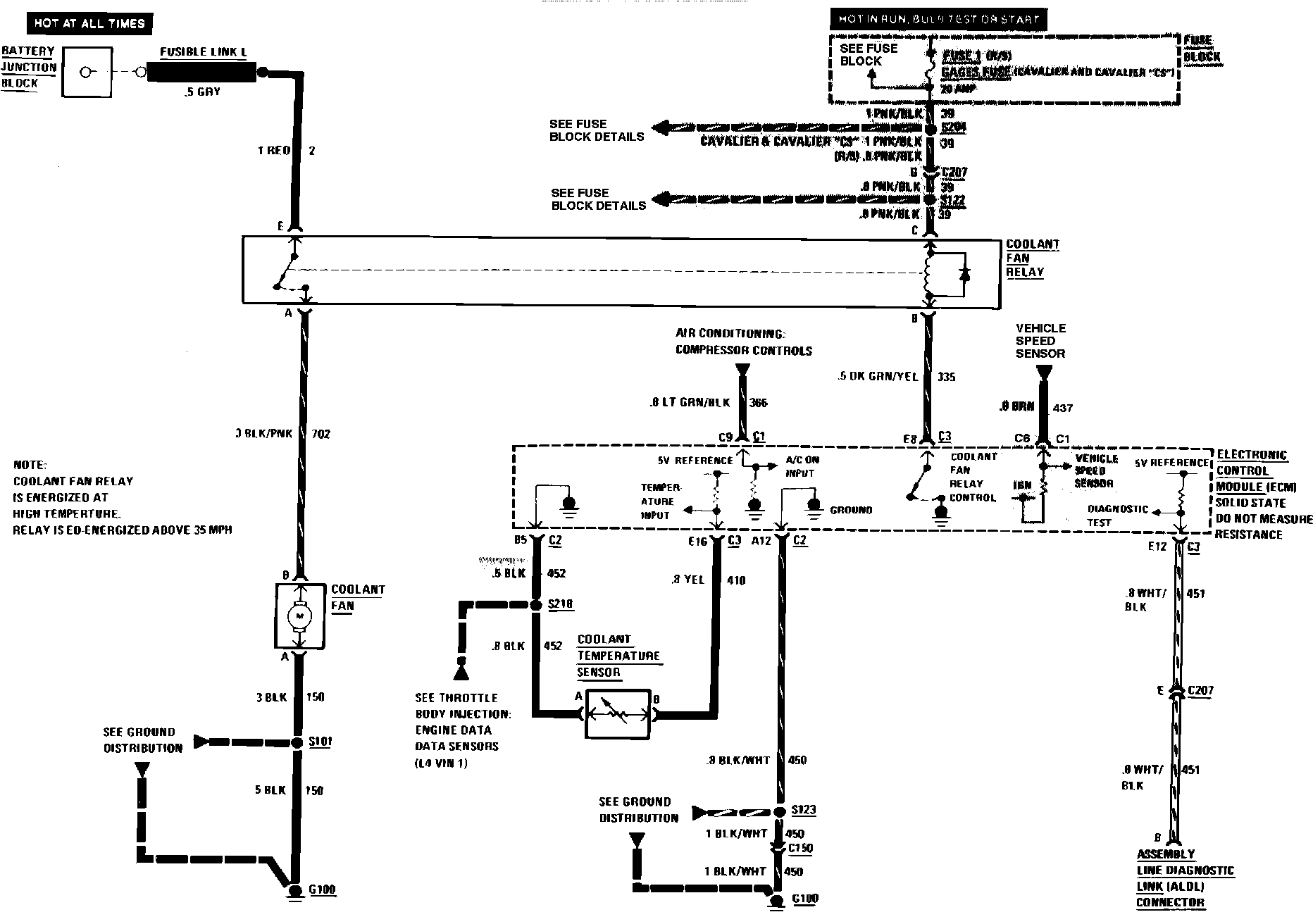

Fig. 42 Coolant Fan Wiring Circuit W/4-121/2.0L Engine:
