Cylinder Head Torque Specifications and Sequence

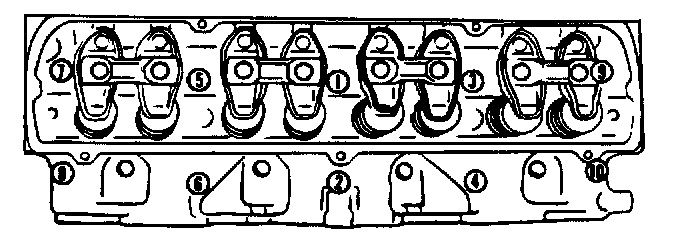

Cylinder Head Torque Specification and Sequence






Torque Specification 169 Nm (125 ft lb)

NOTE: Clean and dip entire bolt in engine oil before tightening to obtain a correct torque reading.
