Electronic/Powertrain Control Module (ECM/PCM)
>>
Without Speed Density Update
Without Speed Density Update

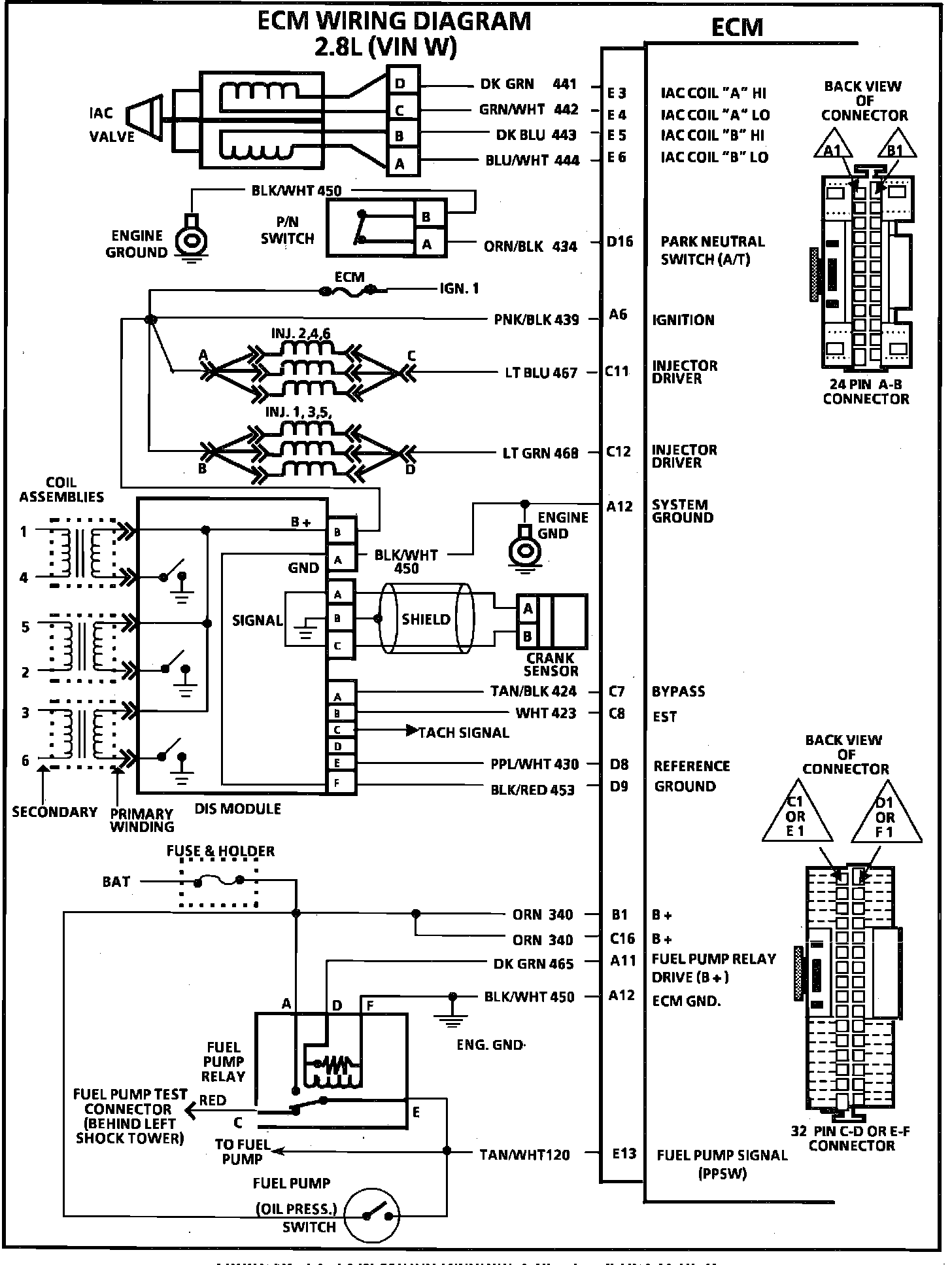

ECM Wiring Diagram Without Speed Density Update:
