Home >> Chevrolet >> 1986 >> Camaro L4-151 2.5L >> Repair and Diagnosis >> Powertrain Management >> Computers and Control Systems >> Oil Pressure Sensor >> Locations

Oil Pressure Sensor: Locations

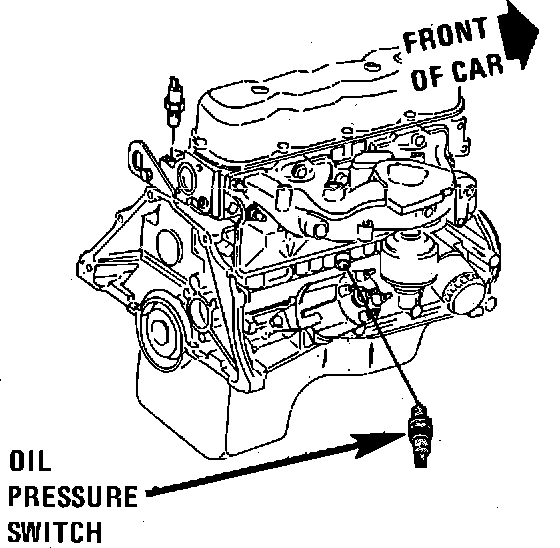

RH side of engine:




Lower RH Side Of Engine Above Distributor
